Description:

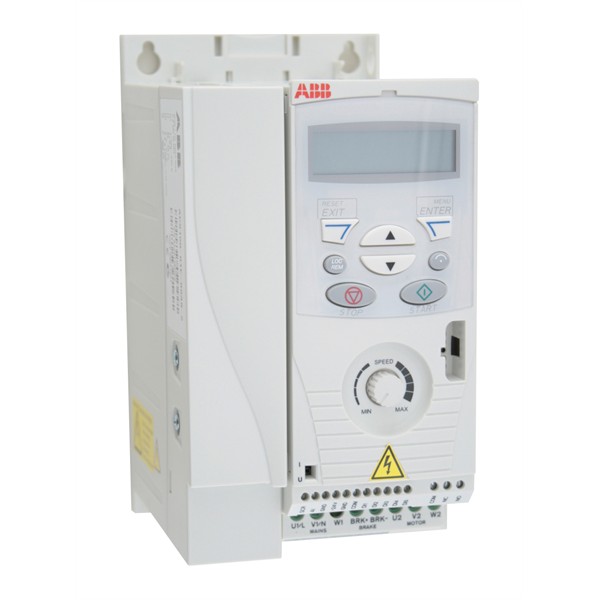

ABB Drives ACS 150 AC Inverter for 2.2kW (3HP) 230V 3 Ph motor in VxF control to 9.8A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.
R2 Size - 105mm Wide x 144mm Deep x 169mm high (plus cable clamp plate at 70mm) IP20 case.
Overload - 150% x 60seconds.
Speed Control Range - 0/500Hz.
Braking - To 40 Ohm minimum external resistor (not supplied) - use the 'Which Resistor' button on this page.
Features - Front Mounted Potentiometer, 1 x Analogue Input, 5 Digital Inputs, 1 Relay Contact set.
Programmable from a pc via 'Flashdrop'.
EMC Filters to EN61800-3 to the 2nd Environment C3 (Industrial).
Can be used with supplies protected by RCD Type A.
Input Current - 21A.
Input Voltage - 200/240V single phase +-10% at 50/60Hz.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 75mm.
Ventilation space at sides - 0mm.
Heat Loss at max output - 113W.
Mounting onto symmetrical DIN rail or use the screw fixings for side or rear mounting.
Full part number is - ACS150-01E-09A8-2
View alternatives - search for 2.2kW.
Replaces the ACS100 that is no longer manufactured.
