Description:

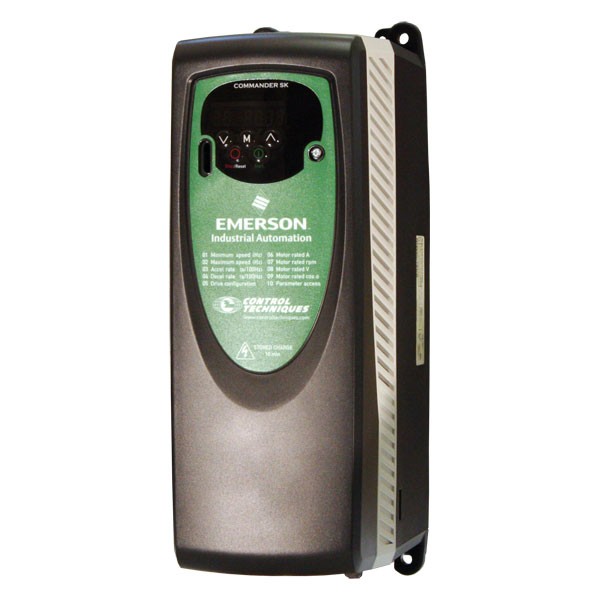

Control Techniques Drives - Commander SK, AC Inverter for a 3.0kW (4HP) 230V 3 Ph motor in Sensorless Flux Vector control to 12.6A. Converts single phase 230V input (or three phase 230V) to three phase 230V for a standard AC Induction motor.
Simple set-up from 'Quick-Start' menu for control up to twice the motors nominal speed.
Size 'D' - 115mm Wide x 198mm Deep x 335mm High - IP20 case.
Overload - 150% x 30seconds.
Speed Control Range - 0/1500Hz.
Braking - 100% duty into minimum 20 Ohm external resistor.
EMC Filters built-in to BSEN61800-3 to the 2nd Environment (Industrial) and removable via pull tab.
2 x Analogue Inputs, 4/5 Digital Inputs (1 x Analogue/Digital), 1 Analogue output, 2 Digital outputs (one relay).
Input Current: - 23.6A via 25A fuse when supplied with 230V single phase.
- 12.5A via 16A fuse when supplied with 230V three phase.
Input Voltage - 200V to 240V Single or Three Phase +-10% at 50/60Hz.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 100mm.
Ventilation space at sides - 0mm.
Mounting with screw fixing (4 x M5).
Full part number is - SKDD200300.
View alternatives - search for 3.0kW.
Replaces Commander SE
