ABB ACS350 - 1.5kW 230V 1ph to 3ph - AC Flux Vector Drive Speed Controller

Click to Zoom

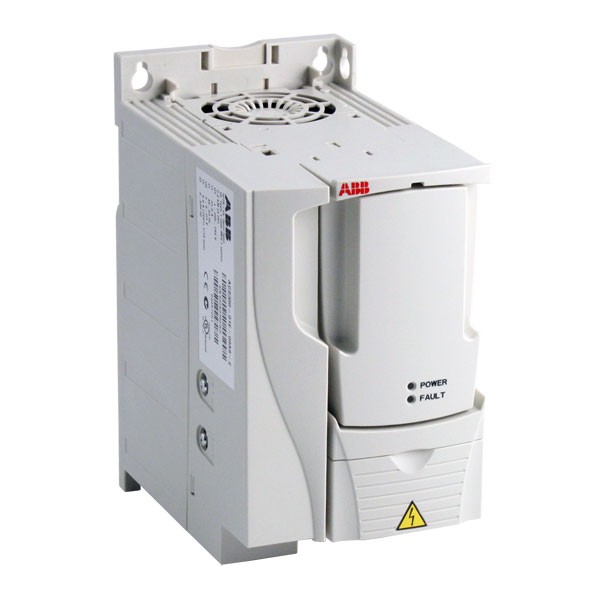

Photo of ABB ACS350 - 1.5kW 230V 1ph to 3ph - AC Flux Vector Drive Speed Controller

Order Code: 20969

Product Brand: ABB

Range: ACS350

Part No: ACS350-01E-07A5-2

Obsolete product. Alternatives may be available - see linked products below

Description:

ABB ACS350 AC Frequency Inverter for 1.5kW (2HP) 230V 3 Ph motor in VxF or Vector control to 7.5A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.

No Keypad included - see linked products below for ACS 350 equivalent with Keypad.

R2 Size - 105mm Wide x 165mm Deep x 202mm high (plus cable clamp plate at 37mm) IP20 case.

Overload - 150% x 60seconds.
Speed Control Range - 0/500Hz.
Braking - To 56 Ohm minimum external resistor (not supplied) - use the 'Which Resistor' button on this page.

Features - 2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
Programmable from a pc via 'Flashdrop'.
EMC Filters to EN61800-3 to the 2nd Environment (Industrial).

Input Current - 16.8A.
Input Voltage - 200/240V single phase +-10% at 50/60Hz.

Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 75mm.
Ventilation space at sides - 0mm (drives can be mounted side by side).
Heat Loss at max output - 27.5W.
Mounting onto symmetrical DIN rail or use the screw fixings for side or rear mounting.

Full part number is - ACS350-01E-07A5-2

Download the ABB ACS350 Manual and Installation Guide from the links below:-
