Part No: ODE-2-22220-1KB4S
Web Price:
£254.87 + VAT
New from Manufacturer with Warranty
1 in Stock - order by 1pm for next working day delivery*
Description:

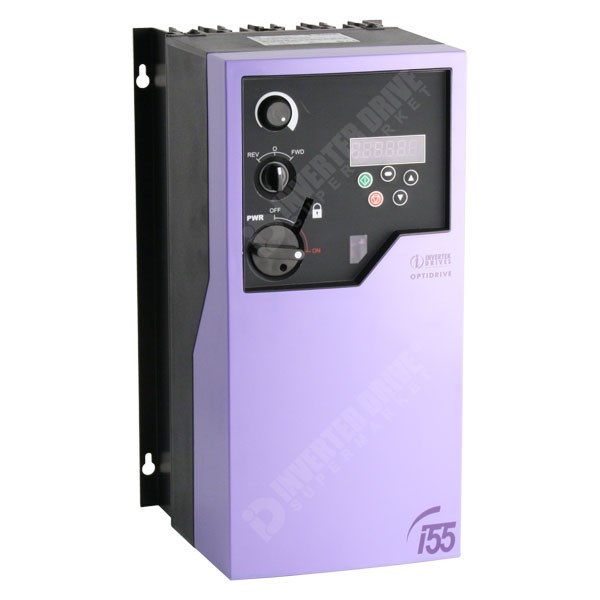

Invertek Optidrive E2 IP55 AC Inverter for 2.2kW (3HP) 230V 3 Ph motor in VxF control to 10.5A. Simple to set up and converts single phase 230V input to 3 phase 230V for a standard AC Induction motor.
IP55 / NEMA 12 enclosure for harsh environments. Switched - Includes Local Power Isolator, Local Potentiometer for speed control and Drive Fwd/Rev switch.
Frame 2 Size - 165mm Wide x 176mm Deep x 310mm High, IP55
Overload - 150% Output Current (15.75A) x 60 seconds, 175% x 2 seconds
Speed Control Range - 0/500Hz.
Braking - To 50 Ohm minimum external resisitor (not supplied) - use the 'Which Resisitor' button on this page.
Features - 2 Analogue/Digital Inputs, 2 x Digital Inputs (4 total), 1 x Analogue/Digital Output, 1 Relay Contact set.
Parameter setting via integral keypad, remote keypad (optional) or from a PC via 'OptiStore' software (RS485 to USB cable required - see linked products below)
Parameter setting from compatible Windows based PDA or Smartphone cable-free via 'OptiWand' software
EMC Filters to EN61800-3 category C2 for 1st environments (domestic) for screened cable lengths of up to 5m (add Optifilter for lengths above 5m).
EMC Filters to EN61800-3 cat C3 (2nd environment - Industrial) for screened cable lengths of up to 25m.
Input Current - 28.8A.
Input Voltage - 200-240V ± 10%
Wall mount using 4 x M4 screw fixings at rear.
4 x Gland Holes (2 x dia 25mm power, 1 x dia 22mm in center, 1 x 17mm in cover).
Rated at 40°C Ambient.
Ventilation space required above and below (150mm below if component is heat-producing).
Ventilation space at sides - 0mm (Drives can be mounted side by side).
Full part number is - ODE-2-22220-1KB4S
View alternatives - search for 2.2kW.
Made in the UK.
Download the Invertek Optidrive Manual from the link below:-
