Part No: 650V-21130010-0F1P00-A2 (650V-005-230-F-00-DISPR-UK-RS0-0)
Web Price:
£177.28 + VAT
New from Manufacturer with Warranty
2 in Stock - order by 1pm for next working day delivery*
Description:

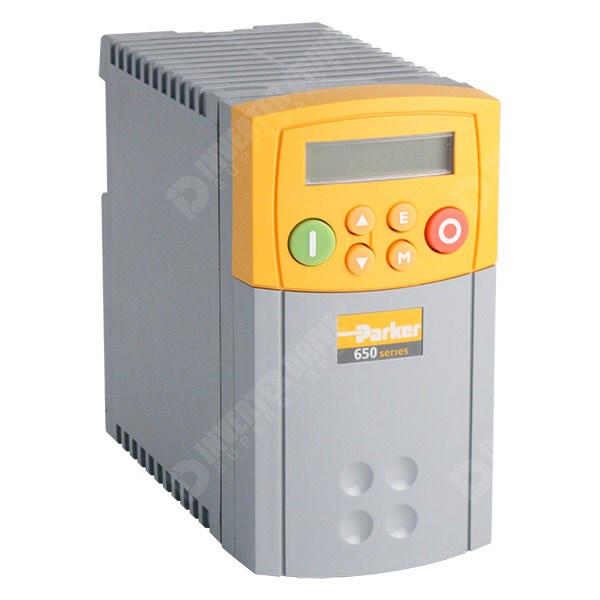

SSD 650V AC Inverter for 0.55kW (0.75HP) 230V 3 Ph motor in VxF or Sensorless Flux Vector control to 3.0A. Simple set-up and ready to run in VxF from its default settings.
73mm Wide x 142mm Deep x 137mm High.
Overload - 150% x 30seconds.
Speed Control Range - 0/240Hz.
Braking - None.
2 x Analogue Inputs, 3/4 Digital Inputs, 1 Analogue output, 1/2 Digital outputs (one relay and one programmable in/out).
Input Current - 7.9A (14A surge for 10ms).
Input Voltage - 220/240V single phase +-10% at 50/60Hz.
EMC Filters to BSEN61800-3 to the 1st and 2nd Environments (Domestic and Industrial).
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 100mm.
Ventilation space at sides - 0mm.
Heat Loss at max output - 41W.
Mounting onto symmetrical DIN rail or use the detachable clip for screw fixing.
Full part number is - 650V-21130010-0F1P00-A2 - Was 650V-005-400-F-00-DISPR-UK-RSO-0 - Exactly the same as SSD Drives, Eurotherm Drives and RS - 650V-005-400-F-01-DISPR-UK-RSO-0.
View alternatives - search for 0.55kW.
