Part No: 650-21170020-0F1P00-A2 (650-015-230-F-00-DISPR-UK-RS0-0)
Web Price:
£189.00 + VAT
New from Manufacturer with Warranty
2 in Stock - order by 1pm for next working day delivery*
Description:

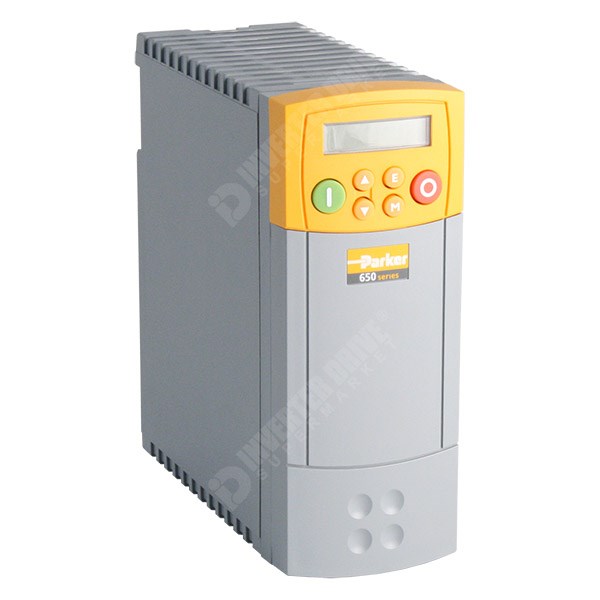

SSD 650 AC Inverter for 1.5kW (2HP) 230V 3 Ph motor in VxF control to 7A. Simple set-up and ready to run from its default settings, includes ports to remote mount its keypad.
Size 2 - 73mm Wide x 173mm Deep x 192mm High.
Overload - 150% x 30seconds.
Speed Control Range - 0/240Hz.
Braking - None.
2 x Analogue Inputs, 3/4 Digital Inputs, 1 Analogue output, 1/2 Digital outputs (one relay and one programmable in/out).
Input Current - 16A (18A surge x 10mS).
Input Voltage - 220/240V single phase +-10% at 50/60Hz.
EMC Filters to BSEN61800-3 to the 1st and 2nd Environments (Domestic and Industrial).
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 100mm.
Ventilation space at sides - 0mm.
Heat Loss at max output - 82W.
Mounting onto symmetrical DIN rail or use the detachable clip for screw fixing.
Full part number is - 650-015-230-F-00-DISPR-UK-RSO-0 - Exactly the same as SSD Drives, Eurotherm Drives and RS - 650-015-230-F-00-DISPR-UK-RSO-0. This product has been sold under many other names including; KIMO, RS Components, Baldor and Newlec.
Options - 3m Remote Keypad cable - CMO57375U300
View alternatives - search for 1.5kW.
