Part No: 650-22196030-BF0P00-A1 (650-022-230-F-00-DISP-UK-0)
Web Price:
£321.30 + VAT
New from Manufacturer with Warranty
1 in Stock - order by 1pm for next working day delivery*
Description:

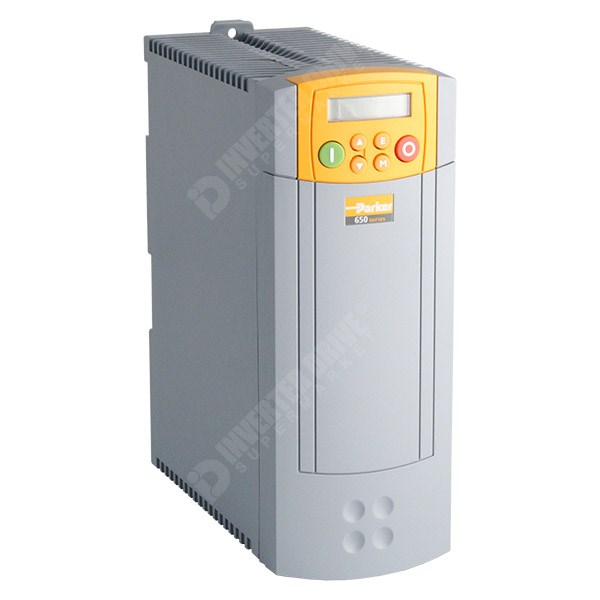

SSD 650 AC Inverter for 2.2kW (3HP) 230V 3 Ph motor in VxF control to 9.6A. Converts single phase 230V input (or three phase x 230V input) to three phase 230V for a standard AC Induction motor.
Simple set-up and ready to run from its default settings.
96mm Wide x 195mm Deep x 257mm High.
Overload - 150% x 30seconds.
Speed Control Range - 0/240Hz.
Braking - 100% duty into minimum 56 Ohm external resistor.
2 x Analogue Inputs, 3/4 Digital Inputs, 1 Analogue output, 1/2 Digital outputs (one relay and one programmable in/out).
Input Current - 22A on 230V 1ph or 14.6A on 230V 3ph.
Input Voltage - 230V Single or Three phase +-10% at 50/60Hz.
EMC Filters to BSEN61800-3 to the 1st and 2nd Environments (Domestic and Industrial).
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 100mm.
Ventilation space at sides - 0mm.
Heat Loss at max output - 112W.
Mounting onto symmetrical DIN rail or use the detachable clip for screw fixing.
Full part number is - 650-22196030-BF0P00-A1 (650-022-230-F-00-DISP-UK-0-0) - Exactly the same as SSD Drives, Eurotherm Drives and RS - 650-022-230-F-01-DISP-UK-0-0.
View alternatives - search for 2.2kW.
