Part No: Sinus M 0005 2S/T BA2K2
Web Price:
£310.00 + VAT
New from Manufacturer with Warranty
Delivery normally 4 weeks
Description:

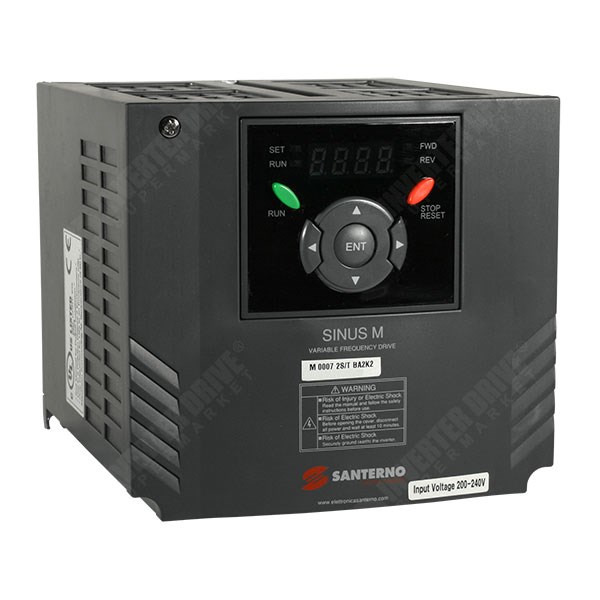

Santerno - AC Inverter for a 2.2kW or 3kW (3HP or 4HP) 230V 3 Ph motor in Simple VxF or Sensorless Flux Vector control to 12A. Converts single phase 230V input (or three phase 230V) to three phase 230V for a standard AC Induction motor.
Simple set-up from 'Quick-Start' menu for control up to twice the motors nominal speed.
140mm Wide x 155mm Deep x 128mm High - IP20 case.
Overload - 150% x 60seconds.
Speed Control Range - 0/400Hz.
Braking - 20% duty into minimum 56 Ohm external resistor.
EMC Filters - Build-in as standard to environment 2 (Industrial). External option is available for Environment 1 (Domestic).
2 x Analogue Inputs (one is Current input), 8 Digital Inputs, 1 Analogue output, 2 Digital outputs (one relay).
Input Current: - xxA via 20A circuit breaker or 25A Fuse.
Input Voltage - 200V to 240V Single or Three Phase +10%, -15% at 50/60Hz (±5%) (reduced kW rating at 200V).
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 100mm.
Ventilation space at sides - 50mm.
Mounting with screw fixing (3 x M4).
Full part number is - Sinus M 0005 2S/T BA2K2 (M00052S/TBA2K2).
View alternatives - search for 3.0kW.
Download the Santerno Sinus Inverter Manual from the link below...
