Part No: 6SE6440-2AB22-2BA1 (6SE64402AB222BA1)
Web Price:
£316.00 + VAT
New from Manufacturer with Warranty
Delivery 5-7 working days
Description:

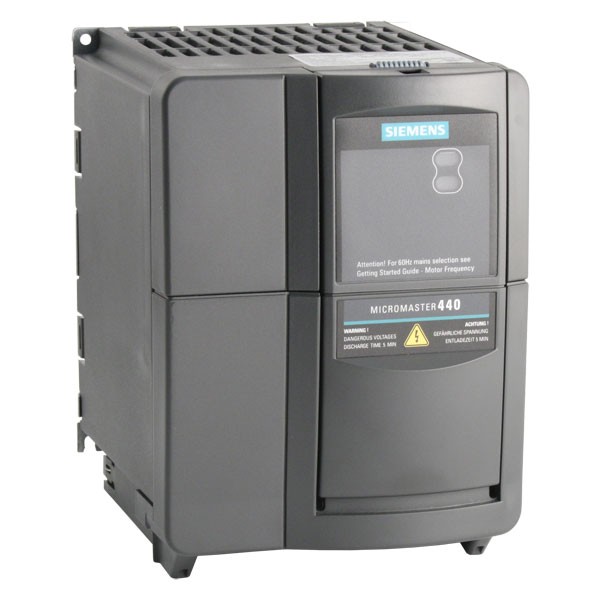

Siemens Micromaster 440 (MM440) Series AC Inverter for 2.2kW (3HP) 230V 3 Ph motor in VxF or Vector control to 10.4A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.
No keypad included - see linked products below for Basic and Advanced Operator Panels.
Frame Size B - 149mm Wide x 202mm High x 172mm Deep. IP20.
Overload - 150% x 60seconds.
Speed Control Range - 0Hz to 650Hz.
Braking - To 100 Ohm minimum external resistor (not supplied) - use the 'Which Resistor' button on this page.
2 Analogue Inputs, 6 Digital Inputs, 2 Analogue Outputs, 3 Relay Outputs
Input Current - 20.2A
Input Voltage - 1ph 200-240V ± 10%, 47-63Hz
EMC Filters to BSEN61800-3 for the 2nd Environment (Industrial).
Wall mount in clean environment or cubicle mount.
Rated -10° to 50°C Ambient.
Ventilation space above and below - 100mm.
Ventilation space at sides - 0mm (drives can be mounted side by side).
Mounting via 4 x M4 Bolts.
Full part number is - 6SE6440-2AB22-2BA1 or 6SE64402AB222BA1. Note: Siemens is sometimes incorrectly spelled Seimens.
View alternatives - search for 2.2kW.
Download the Micromaster 440 Manual, Quick Start Guide and Parameter List from the links below:-
