Part No: VFNC3S-2002PL
Web Price:
£92.22 + VAT
New from Manufacturer with Warranty
Delivery 2-4 working days
Description:

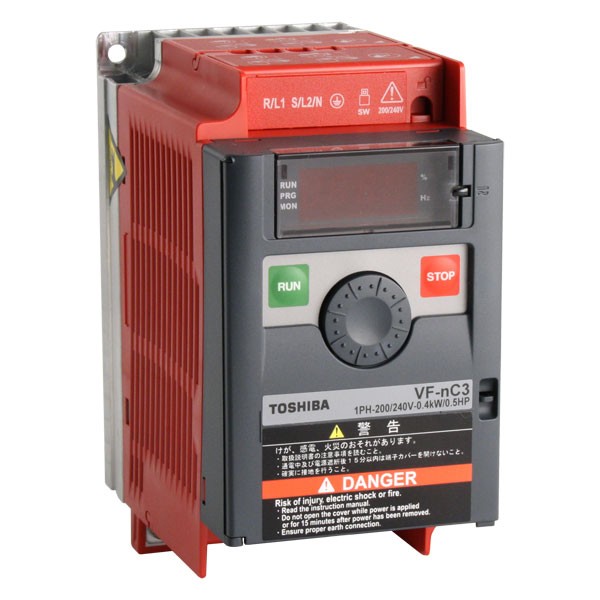

Toshiba Tosvert VF-nC3 Inverter for 0.25kW (0.33HP) 230V 3 Ph motor in VxF control to 1.4A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.
Size - 72mm Wide x 102mm Deep x 143mm high in IP20 case.
Overload - 150% x 60 seconds, 200% x 0.5 seconds.
Speed Control Range - 0.1-400Hz.
Braking - none (braking module optional).
Features - Front Mounted Potentiometer, 1 x Analogue Input, 1 x Analogue Output, 4 Digital Inputs, 1 Relay Contact set. RS-485 communication port.
Programmable from built-in keypad.
EMC Filters to EN61800-3 to the 1st Environment C1 (Domestic) for cable lengths up to 5m.
EMC Filters to EN61800-3 to the 2nd Environment C2 (Industrial) for cable lengths up to 10m.
Input Current - 3.4A
Input Voltage - 200-240V single phase +-10% at 50-60Hz ±5%.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 100mm.
Ventilation space at sides - 50mm.
Heat Loss at max output - 20W.
Mounting onto screw fixings for rear mounting.
Full part number is - VFNC3S-2002PL. Replaces VFNC1S-2002PL. See linked products below for alternative power ratings.
View alternatives - search for 0.25kW.
Download the Installation Guide and Manual from the link below:-
