Manufacturer: ABB
Part No: ACS350-03E-01A2-4
Web Price:
£134.46 + VAT
New from Manufacturer with Warranty
1 in Stock - order by 1pm for next working day delivery*
Description:

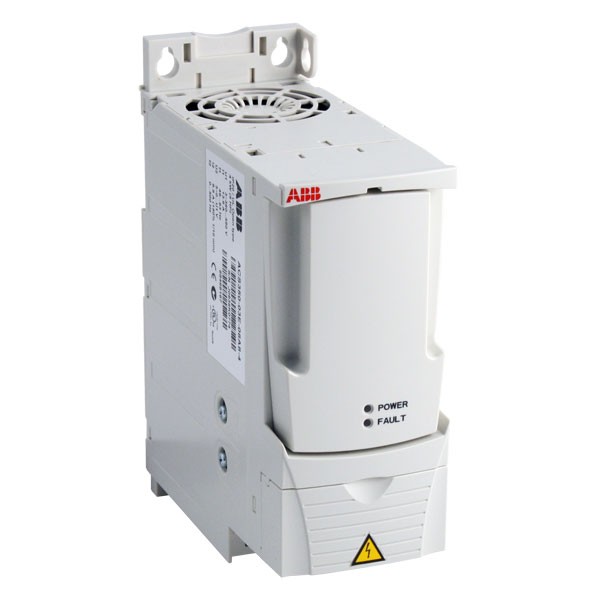

ABB ACS350 AC Inverter for 0.37kW (0.5HP) 400V 3 Ph motor in VxF or Vector control to 1.2A. Simple to set-up for a standard AC Induction motor.
No Keypad included - see linked products below for ACS 350 equivalent with Keypad
R0 Size - 70mm Wide x 161mm Deep x 202mm high. IP20 case.
Overload - 150% x 60seconds.
Speed Control Range - 0/500Hz.
Braking - To 200 Ohm minimum external resistor (not supplied) - use the 'Which Resistor' button on this page.
Features - 2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
Programmable from a pc via 'Flashdrop'.
EMC Filters to EN61800-3 to the 2nd Environment (Industrial).
Input Current - 2.2A.
Input Voltage - 380-480V three phase at 48-63Hz.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 75mm.
Ventilation space at sides - 0mm (drives can be mounted side by side).
Heat Loss at max output - 24.4W.
Mounting onto symmetrical DIN rail or use the screw fixings for side or rear mounting.
Full part number is - ACS350-03E-01A2-4+J404
View alternatives - search for 0.37kW.
Download the ABB ACS350 Manual and Installation Guide from the links below:-
