LS Starvert iG5A - 2.2kW 400V - AC Inverter Drive Speed Controller, Unfiltered

Click to Zoom

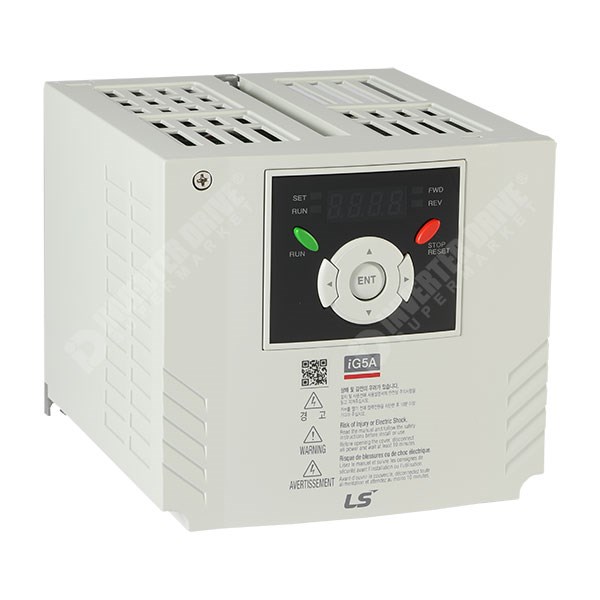

Photo of LS Starvert iG5A - 2.2kW 400V - AC Inverter Drive Speed Controller, Unfiltered

Order Code: 19971

Product Brand: LS

Range: Starvert iG5A

Part No: SV022iG5A-4

£183.00 + VAT

Delivery 3-5 working days

New from Manufacturer with Warranty

Description:

LS Industrial Systems Starvert iG5A AC Frequency Inverter for 2.2kW (3HP) 400V 3 Ph motor in VxF or Sensorless Vector Control control to 6A. Simple to set-up for a standard AC Induction motor.

Dimensions - 140mm Wide x 155mm Deep x 128mm high.

Overload - 150% x 60 seconds.
Speed Control Range - 0-400Hz.
Braking - To 200 Ohm minimum external resistor (not supplied) - See the Resistor options linked below or use the 'Which Resistor' button on this page.

Features - Removable keypad, 1 x Analogue Input, 8 Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
Programmable from a PC via 'Drive View'.
EMC Filters - None. See linked products below for external footprint EMC Filter Module.

Input Current - 7.2A.
Input Voltage - 380-480V three phase +10%, -15% at 50/60Hz ±5%.

Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 100mm.
Ventilation space at sides - 50mm.
3 x 4.5mm diameter mountings at rear for mounting.

Full part number is - SV022iG5A-4

Can be used with two phase input at 40% de-rating for motor control, to replace a capacitor based phase converter supply.
Download the LS Starvert iG5A Manual from the link below:-
