Part No: SV0370iS7-4SOD
Web Price:
£1,662.40 + VAT
New from Manufacturer with Warranty
Delivery 3-5 working days
Description:

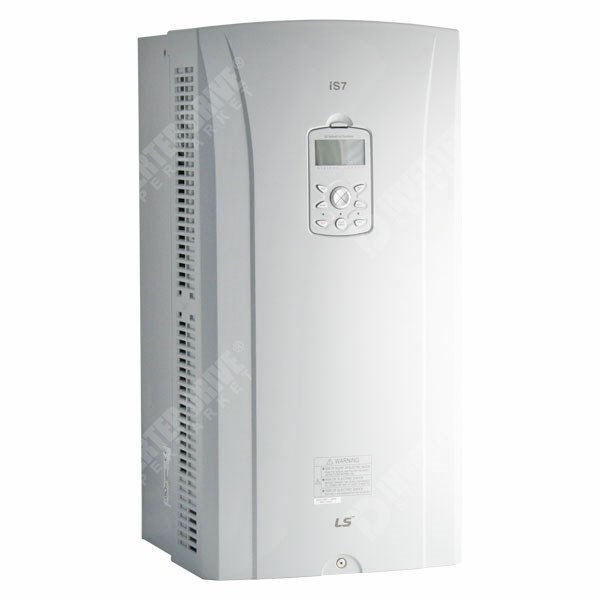

LS Industrial Systems Starvert iS7 AC Inverter for 37kW (50HP) 400V 3 Ph motor to 75A at high overload, or 45kW (60HP) to 91A when Fan/Pump rated. Operates in VxF, Sensorless (Open Loop) Flux Vector control or Closed Loop Flux Vector (with optional encoder feedback card). Simple set-up and ready to run from its default settings.
Includes Standard Multiline Keypad. See linked products below for equivalent without keypad.
Dimensions - 300mm Wide x 300.4mm Deep x 594mm high. IP21.
Overload - 150% x 60 seconds, 200% for 22 seconds (37kW High Overload).
Overload - 110% x 60 seconds (45kW Fan/Pump rated).
Speed Control Range - 0-400Hz.
Braking - None (option).
Features - Modbus RTU, 1 x Analogue Input, 8 Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
Programmable from a PC via 'DriveView'.
EMC Filters - None. See linked products below for external EMC Filter option.
Input Current - 69A at High Overload, 109A when Fan/Pump rated.
Input Voltage - 380-480V three phase +10%, -15% at 50/60Hz ±5%.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 500mm.
Ventilation space at sides - 200mm.
4 x 10mm diameter mountings at rear for mounting.
Full part number is - SV0370iS7-4SOD
View alternatives - search for 37kW.
Download the LS Starvert iS7 Manual from the link below:-
