Part No: 650V-432230C0-B01P00-A3 (650VC-0110-400-0011-UK-0-0-B0-0-0)
Web Price:
£754.35 + VAT
New from Manufacturer with Warranty
4 in Stock - order by 1pm for next working day delivery*
Description:

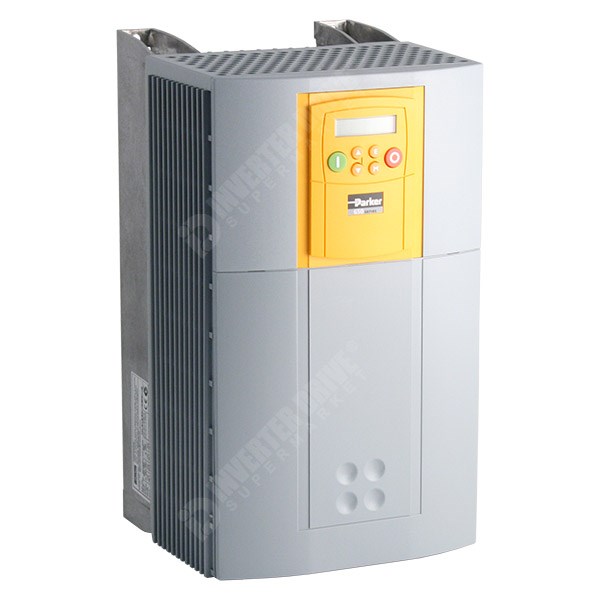

SSD 650V AC Inverter for 11kW (15HP) 400V 3 Ph motor to 23A at high overload, or 15kW (20HP) to 31A when Fan/Pump rated - operates in VxF or Sensorless Flux Vector control. Simple set-up and ready to run in VxF from its default settings.
Size 'C' - 201mm Wide x 208mm Deep x 348mm High.
Overload - 150% x 30seconds and 180% for 0.5seconds.
Speed Control Range - 0/240Hz.
Braking - 35% duty or 100% for 20seconds into minimum 50 Ohm external resistor.
2 x Analogue Inputs, 3/5 Digital Inputs, 1 Analogue output, 1/3 Digital outputs (one relay and two programmable in/out).
Input Current - 26.1A at high overload or 33.6A when Fan/Pump rating set.
Input Voltage - 380/460V three phase +-10% at 50/60Hz.
Input fuse - 32A at high overload or 40A when Fan/Pump rating set - to suit input bridge at 4000A²s.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 70mm.
Ventilation space at sides - 15mm.
Heat Loss at max output - 330W at high overload or 500W when Fan/Pump rating set.
Mounting with M6 screw fixing on 150mm x 335mm centres.
Full part number is - 650V-432230C0-B01P00-A2 - Was 650VC-0110-400-0011-UK-0-0-B0-0-0 - Exactly the same as SSD Drives and Eurotherm Drives - 650VC-0110-400-0010-UK-0-0-B0-0-0.
Add the falling dirt protection cover below, if you have -0021- or -0020- in the product code.
View alternatives - search for 11kW.
