Part No: 650V-432380D0-B01P00-A3 (650VD-0180-400-0011-UK-0-0-B0-0-0)
Web Price:
£1,347.20 + VAT
New from Manufacturer with Warranty
1 in Stock - order by 1pm for next working day delivery*
Description:

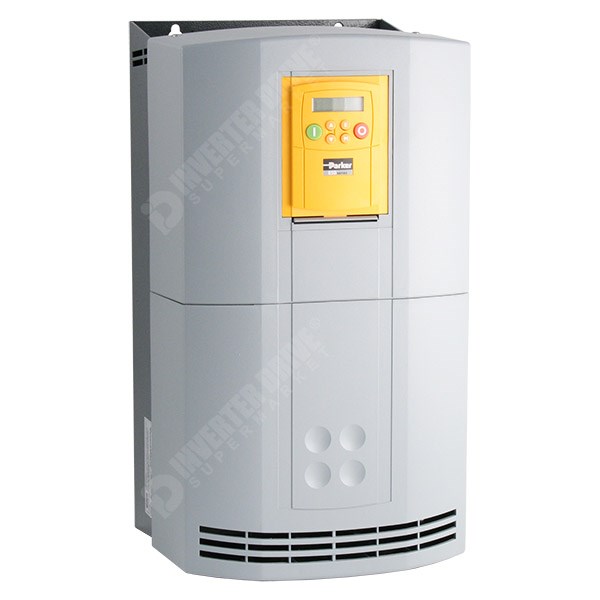

SSD 650V AC Inverter for 18.5kW (25HP) 400V 3 Ph motor to 38A at high overload or 22kW (30HP) to 45A when Fan/Pump rated, operates in VxF or Sensorless Flux Vector control. Simple set-up and ready to run in VxF from its default settings.
Size D - 252mm Wide x 245mm Deep x 453mm High.
Overload - 150% x 30seconds and 180% for 0.5seconds.
Speed Control Range - 0/240Hz.
Braking - 40% duty 100% for 20 seconds into minimum 27 Ohm external resistor.
2 x Analogue Inputs, 3/5 Digital Inputs, 1 Analogue output, 1/3 Digital outputs (one relay and two programmable in/out).
Input Current - 40.5A at high overload or 47.2A when Fan/Pump rating set.
Input Voltage - 380/460V three phase +-10% at 50/60Hz.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 70mm.
Ventilation space at sides - 15mm.
Heat Loss at max output - 605W at high overload or 730W when Fan/Pump rating set.
Mounting with M6 Screws on 150mm x 440mm fixing.
Full part number is - 650VD-0180-400-0011-UK-0-0-B0-0-0 - Exactly the same as SSD Drives and Eurotherm Drives - 650VD-0180-400-0010-UK-0-0-B0-0-0.
View alternatives - search for 18kW.
