Part No: 6SE6420-2AD22-2BA1 (6SE64202AD222BA1)
Web Price:
£369.60 + VAT
New from Manufacturer with Warranty
Delivery 5-7 working days
Description:

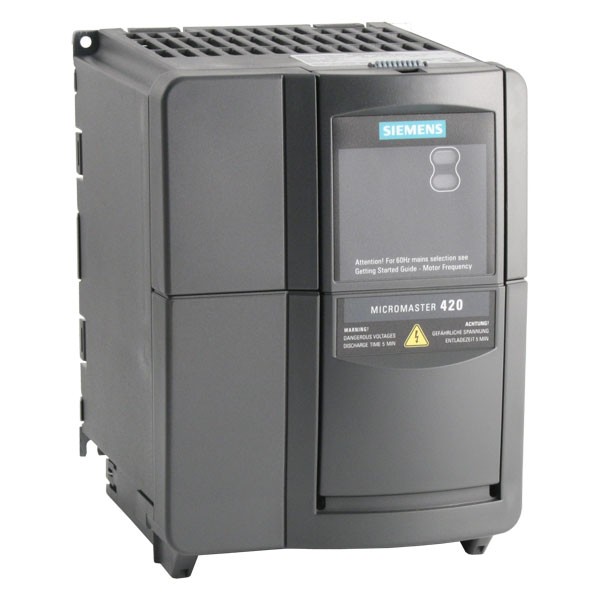

Siemens Micromaster 420 (MM420) Series AC Inverter for 2.2kW (3HP) 400V 3 Ph motor in VxF control to 5.9A. Simple set-up and ready to run from its default settings.
No keypad included - see linked products below for Basic and Advanced Operator Panels.
Frame Size B - 149mm Wide x 202mm High x 172mm Deep. IP20.
Overload - 150% x 60seconds.
Speed Control Range - 0Hz to 650Hz.
Braking - DC braking, compound braking.
1 Analogue Input, 3 Digital Inputs, 1 Analogue Output, 1 Relay Output
Input Current - 7.5A
Input Voltage - 3ph 380-480V ± 10%, 47-63Hz
EMC Filters to BSEN61800-3 for the 2nd Environment (Industrial).
Wall mount in clean environment or cubicle mount.
Rated -10° to 50°C Ambient.
Ventilation space above and below - 100mm.
Ventilation space at sides - 0mm (drives can be mounted side by side).
Full part number is - 6SE6420-2AD22-2BA1 or 6SE64202AD222BA1. Note: Siemens is sometimes incorrectly spelled Seimens.
View alternatives - search for 2.2kW.
Download the Micromaster 420 Manual and Getting Started Guide from the links below:-
