Manufacturer: [NA]
Part No: VSKIT-1HP-WEG-CFW-10-MAR-4P-B3
Web Price:
£128.89 + VAT
New from Manufacturer with Warranty
Delivery normally 2 weeks
Description:

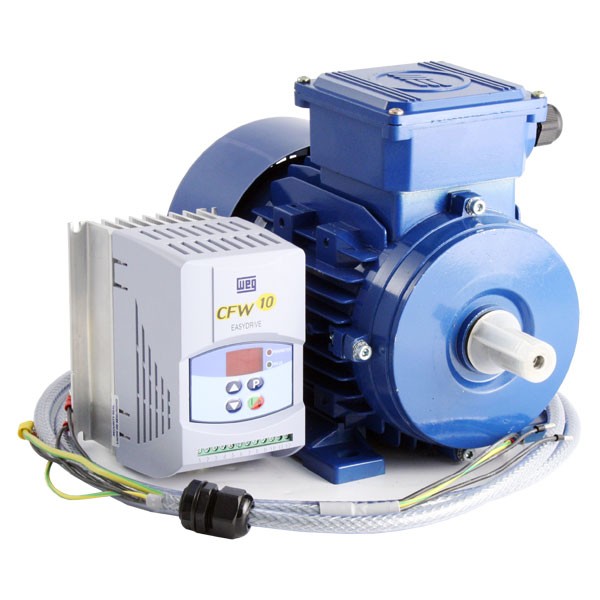

0.75kW (1 Horsepower) Variable Speed Inverter Drive and Motor Kit for Single Phase 230V supply. Consists of WEG CFW-10 Inverter, Marelli motor and 2m length of fully-screened SY cable with terminated ends for easy installation.
Inverter:
WEG CFW-10 series AC Inverter. Converts Single Phase 230V to Three Phase 230V with variable frequency from 0Hz to 300Hz (to 100Hz with included motor).
Can also be used with a Potentiometer for speed control via knob and dial - see linked products below.
IP20 rated for cubicle installation or wall mount in clean environment.
EMC Filters: BSEN61800-3 to the 2nd Environment (Industrial).
Supply: 200-240V Single Phase +10%, -15% at 50/60Hz ±2Hz. Max 8A.
Motor:
Marelli 80 Frame 4 Pole 3 Phase Motor. B3 Foot Mount. 230V/400V dual-voltage - connect in "Delta" for use with the CFW-10 Drive included in this kit.
Output: 20:1 Speed Control range from 140RPM to 2800RPM, with suitable de-rating at the lower speeds.
Cable:
Fully-screened SY cable with terminated connectors to suit both Motor and Drive.
For full product details, more photos or to order these items individually, see linked products below:-
