Part No: 631-001-230-F-00
Web Price:
£539.70 + VAT
New from Manufacturer with Warranty
Delivery 3-5 working days
Description:

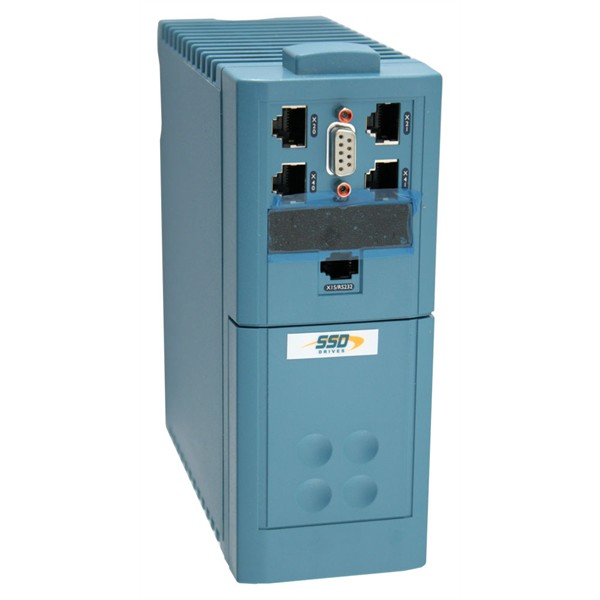

631 AC Servo Drive controller for Torque, Speed and Position Control of a Brushless AC Servo motor.
Features:-
Ready tuned current loop from extensive motor library.
Fully Programmable move, math and sequence functions.
Additional Encoder input or output for follower or master encoder function.
CAN Interface.
DIN rail mounting
1A continuous rating x 230V AC output
Input is 230V 1 phase x 3A.
IP20 enclosure rating
72mm wide x 175mm deep x 205mm high
Ventilation space above and below - 100mm.
Ventilation space at sides - 0mm.
Weighs 1.5kg
EMC Filters to BSEN61800-3 1st and 2nd Environments (Domestic and Industrial).
Suitable for use with Parvex NX, SSD and ASB ACMn, ACM2n and ACG Servo Motors.
Manufacturers Part Number - 631-001-230-F-00
Exactly the same as Eurotherm Drives - 631/001/230/F/00.
