Part No: 637F-K-D6R-16-S5-7-0-000-000-RD2
Web Price:
£1,600.28 + VAT
New from Manufacturer with Warranty
Delivery normally 6 weeks
Description:

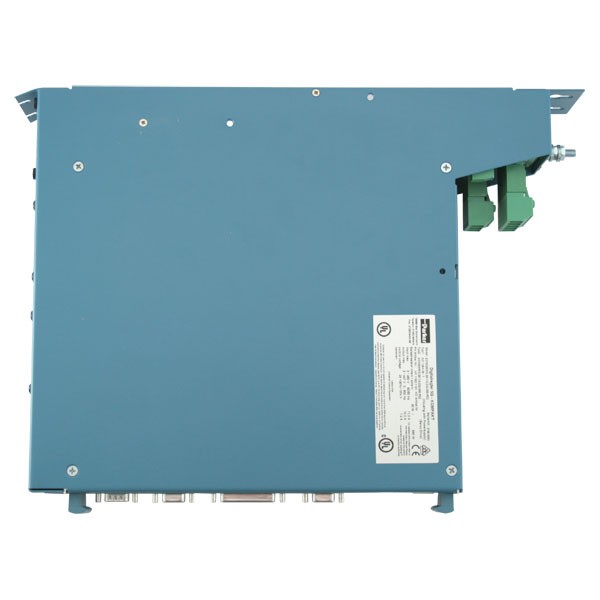

637 AC Servo Drive controller for Torque, Speed and Position Control of a Brushless AC Servo motor to 16A.
Features:-
Ready tuned current loop from extensive motor library.
Fully Programmable move, math and sequence functions.
8 x Digital Inputs, 3 x Digital Outputs and 4 Analogue Inputs.
Additional Encoder input or output for follower, master encoder or external CNC function.
Braking to external resistor at 20 Ohms minimum.
Resolver feedback card fitted (RD2) (Hyperface card is optional - please ask)
16A continuous rating x 400V AC output
200% x 5 seconds to 100% RMS
Input is 400V 3 phase x 18A (maximum is 460V +-10%).
Requires 24V DC control supply at 1.5A continuous and 6A peak for 0.8ms.
IP20 enclosure rating
105mm wide x 280mm deep x 400mm high
Ventilation space above and below - 100mm.
Ventilation space at sides - 0mm.
Weighs 8.8kg
Suitable for use with Parvex NX, SSD and ASB ACMn, ACM2n, ACR and ACRL Servo Motors.
Manufacturers full part number - 637F-K-D6R-16-S5-7-0-000-000-RD2 (637F/K/D6R/16/S5/7/0/000/000/RD2)
637F is the 'Fast' design and replaces the 637. Exactly the same as Eurotherm Drives - 637F-K-D6R-16-7 (637F/K/D6R/16/7) for standard resolver feedback.
Sold under various names including SSD Drives, Eurotherm Drives, ASB Apollo 3G, Samson 3G and Parker Hannifin.
Download the 637f Manual from the link below...
