Manufacturer: ABB
Part No: ACSM1-04AM-03A0-4
Web Price:
£517.00 + VAT
New from Manufacturer with Warranty
Delivery normally 2 weeks
Description:

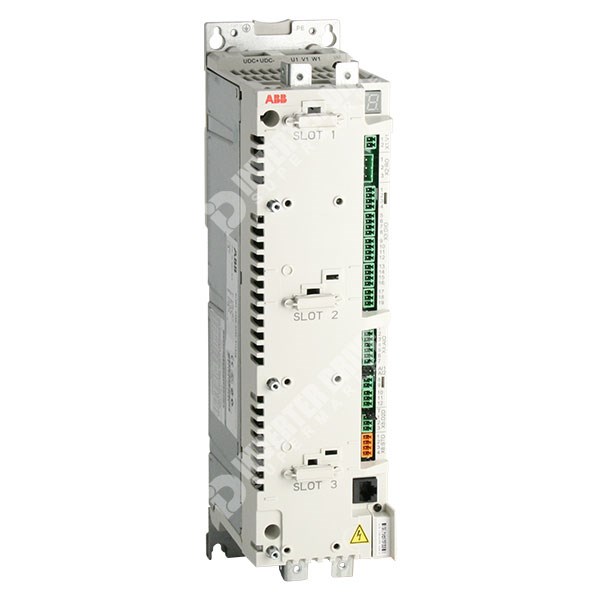

ABB Drives ACSM1 Servo drive for Speed, Position and Torque control to 3A continuous. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.
Size A - 90mm Wide x 169mm Deep x 364mm high in IP20 case.
Overload - 150% x 60seconds.
Speed Control Range - 0/500Hz.
Braking - To 120 Ohm minimum external resistor (not supplied) - use the 'Which Resistor' button on this page.
Features - 2 x Analogue Inputs, 2 x Analogue outputs (one Voltage, one Current), 6 Digital Inputs, 1 Relay Contact set.
Assistant Control Panel is incuded.
Programmable from a pc with additional software.
EMC Filters excluded - see external unit.
Input Current - 4.7A.
Input Voltage - 380/440V three phase +-10% at 50/60Hz.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - xxmm.
Ventilation space at sides - xmm.
Heat Loss at max output - xxW.
Mounting onto M5 screw fixings at 353mm x 75mm.
Full part number is - ACSM1-04A-03A0-4+ACS-CP-U
Download the ABB ACSM1 Installation Guide and Manual from the link below:-
