Order Code: 19724
Product Brand: [NA]
Part No: 5512 (230V) (DAO54339)
Obsolete product. Alternatives may be available - see linked products below
Description:

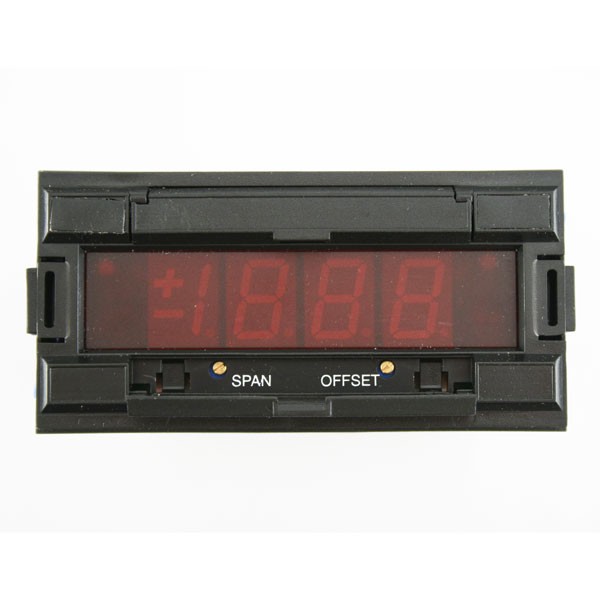

Digital LED Panel Meter for Indication of Speed, Ratio or Load.
Features
3 1/2 Digit LED Display with sign.
Scalable to 0/1999 by potentiometer adjustment.
Accuracy is 0.15% +-1 digit
Jumper to place the decimal point.
Analogue input range is from +- 0/5V to 0/200V DC
Regulated DC power supply output - 10V to 24V x 50mA for remote sensor exitation (adjustable via potentiometer at the back).
Requires 230V AC Power supply. See linked products below for 110V version.
Size is 96mm x 48mm x 117mm deep in DIN43700 case
Panel cut out is 92.5mm x 44.5mm
Used to indicate Speed, Load or other signal from 0/10V signals
Can be used to indicate speed directly from a 180V DC motor armature.
Space on the bezel for Indicated units.
Sample stick-on units provided.
Manufacturers part number is FEMA MAG-35-36
Relay outputs shown on the connection diagram are not included.
SSD Drives part number was 5512 (DA054339).
Download the panel meter manual from the link below...
