Order Code: 19409
Part No: CNW M 854/2
£63.00 + VAT
Delivery normally 10 weeks
New from Manufacturer with Warranty
Description:

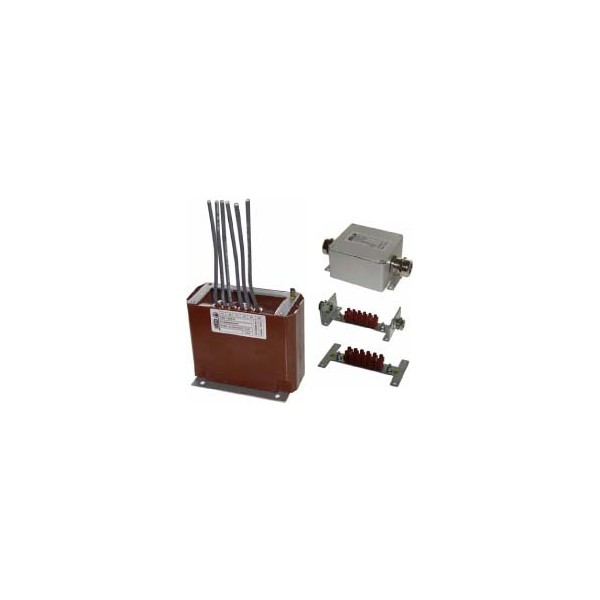

IP64 Three Phase AC Output Choke to 2A.
For use close to an Inverter Drive having a long motor cable run.
Rating 2A
500V 3 phase +-10%
Cable run is 150m maximum, or as specified by the Inverter Manufacturer.
Switching frequency is 3kHz to 8kHz
Inductance 7mH
Protection IP64 with glands for external mounting, without additional enclosure.
Size: 151mm Length x 85mm Width x 60mm Height
Connectors suitable for 1.5mm² cable (max 2.5mm²) with M20 Gland
RPG7 Enclosure.
- High frequency emissions will be reduced from medium and long motor cables.
- Maximum motor cable length increases for compliance with EMC certification of Filtered drives, subject to the requirements of the Inverter Manufacturer.
- Current load for long cable runs is reduced, by removing the effect of capacitance in motor cables.
- High stray Voltages at motor terminals are eliminated, by removing the possibility of Voltage resonance in long motor cables.
Also known as a dv/dt filter.
Manufacturers Part number is CNW-M-854/2
