Order Code: 19470
Part No: 508-00-20-00 (508/00/20/00)
£127.20 + VAT
List Price: £159.00
2 in Stock - order by 3pm for next working day delivery*
New from Manufacturer with Warranty
Description:

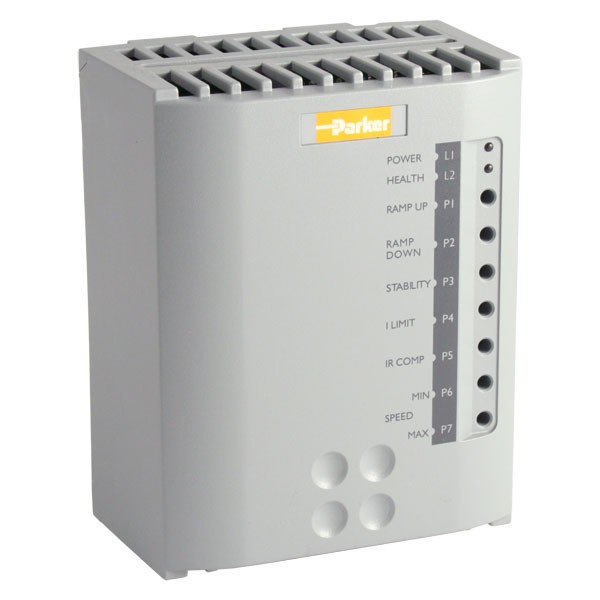

Parker SSD Drives 508 - 12A Single Quadrant DC Thyristor (thyristor) Drive for 230 or 110V single phase AC input.
230V AC supply - 1.8kW (2.3HP) at 180V DC for motor speed and torque control.
110V AC supply - 0.9kW (1.2HP) at 90V DC.
Simple to set-up in analogue, non-isolated form and ready to run from its default settings.
105mm Wide x 80mm Deep x 140mm High.
Terminals are:-
1 - Tacho feedback input (or select armature Voltage feedback).
2 - 0V.
3 - Run input - 0V in Speed Control (or +10V in current limit to eliminate the stall protection).
4 - Speed setpoint input.
5 - +10V output for potentiometers and Run signal.
6 - Current limit input, 0/10V = 0/100% Current after preset limit.
Further 6 Auxiliary i/o on pins, including Zero Speed and Health outputs, additional speed setpoint and zero speed trim inputs.
Input Current - 12A to 18A (depending on motor inductance).
Input Voltage - 110 or 230V single phase +-10% at 50/60Hz.
Rated at 40C Ambient.
Ventilation space above and below - 50mm.
Ventilation space at sides - 0mm.
Heat Loss at max output - 40W.
Mounting onto symmetrical DIN rail or panel mount with three screw fixings.
Full part number is - 508-00-20-00 - Exactly the same as SSD Drives, Eurotherm Drives and RS - 508-01-20-00. Sometimes specified as 508002000.
Replaces:-
SSD, Eurotherm and Rapier Drives 505 Cube (12A) and Shackleton System Drives 500 (15A).
View alternatives - search for 2.2kW, 1.5kW or 1.1kW.
Use this product in Current Control for Oerlikon Blanchard grinding machine magnets.
Download the 508 Technical Product Manual from the link below. The 505 and 515 Cube Manual (now obsolete) is a link below also...
