Part No: 512C-04-00-00-00 (512C/04/00/00/00)
Web Price:
£133.72 + VAT
New from Manufacturer with Warranty
Delivery 2-4 working days
Description:

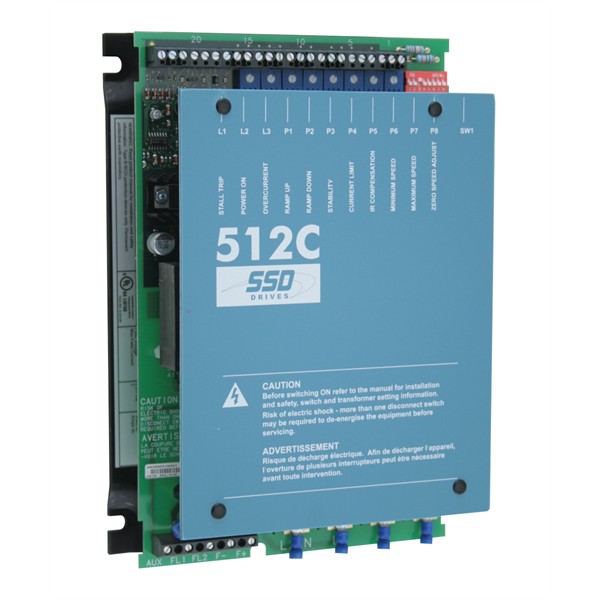

Parker SSD Drives 512C - 4A Single Quadrant DC Thyristor Drive for 400V, 230V or 110V single/two phase Supply.
400V AC supply - 1.0kW (1.4HP) at 320V DC for motor speed and torque control.
230V AC supply - 0.55kW (0.75HP) at 180V DC.
110V AC supply - 0.3kW (0.4HP) at 90V DC.
Simple to set-up in analogue, fully-isolated form and ready to run from its default settings.
160mm Wide x 90mm Deep x 240mm High.
Terminals include:-
2 x Analogue Setpoint Inputs.
Current Limit Input.
Tacho input (or internal AVF) Feedback.
4 x Analogue Outputs for Ramp, Total Setpoint, Actual Speed and Current.
2 x Digital outputs for Health and Zero Speed (selectable to Zero Setpoint).
+ & - 10V for Potentiometers.
Input Current - 6A
Input Voltage - 110V/120V, 220V/240V, 380V/415V or 460V/480V single phase/two phase +-10% at 50/60Hz.
Rated at 40C Ambient.
Ventilation space above and below - 75mm.
Ventilation space at sides - 0mm.
Heat Loss at max output - 15W.
Panel mount with screw fixings on 253 x 120mm centres.
Full part number is - 512C-04-00-00-00, Exactly the same as SSD Drives, Rapier Drives, Eurotherm Drives equavalent and RS - 512C-04-01-00-00. Sometimes specified as 512C04000000.
Replaces:-
SSD, Eurotherm, Rapier Drives and RS 510 Shackleton System Drives 500.
View alternatives - search for 0.37kW, 0.55kW, 0.75kW or 1.1kW.
