Part No: 514C-16-00-00-00 (514C/16/00/00/00)
Web Price:
£440.43 + VAT
New from Manufacturer with Warranty
2 in Stock - order by 1pm for next working day delivery*
Description:

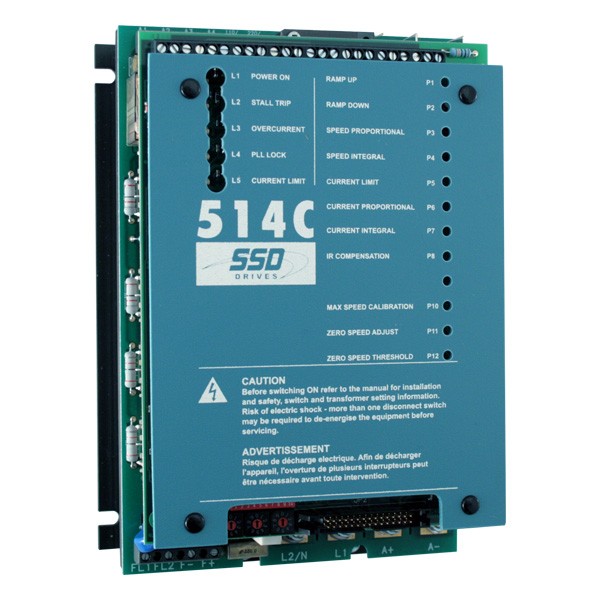

Parker SSD Drives 514C - 16A Four Quadrant DC Thyristor Drive for 400V, 230V or 110V single/two phase Supply.
400V AC supply - 4.1kW (5.5HP) at 320V DC for motor speed and torque control.
230V AC supply - 2.3kW (3HP) at 180V DC.
110V AC supply - 1.2kW (1.5HP) at 90V DC.
Simple to set-up in analogue, fully-isolated form and ready to run from its default settings.
160mm Wide x 130mm Deep x 240mm High.
Terminals include:-
2 x Analogue Setpoint Inputs.
Current Limit analogue Input.
Tacho input (or internal AVF) Feedback.
4 x Analogue Outputs for Ramp, Total Setpoint, Actual Speed and Current meter.
2 x Digital outputs for Health and Zero Speed (selectable to Zero Setpoint).
+ & - 10V for Potentiometers.
Input Current - 24A
Input Voltage - 110V/120V, 220V/240V, 380V/415V or 460V/480V single phase/two phase +-10% at 50/60Hz.
Rated at 40C Ambient.
Ventilation space above and below - 75mm.
Ventilation space at sides - 0mm.
Heat Loss at max output - 75W.
Panel mount with screw fixings on 253 x 120mm centres.
Full part number is - 514C-16-00-00-00, Exactly the same as SSD Drives, Rapier Drives, Eurotherm Drives equavalent and RS - 514C-16-01-00-00. Sometimes specified as 514C16000000.
Replaces:-
SSD, Eurotherm, Rapier Drives and RS 540
View alternatives - search for 4kW, 3kW, 2.2kW or 1.1kW
