Manufacturer: [NA]
Part No: DOL-5.5-ATEX
Web Price:
£281.00 + VAT
New from Manufacturer with Warranty
Delivery normally 6 weeks
Description:

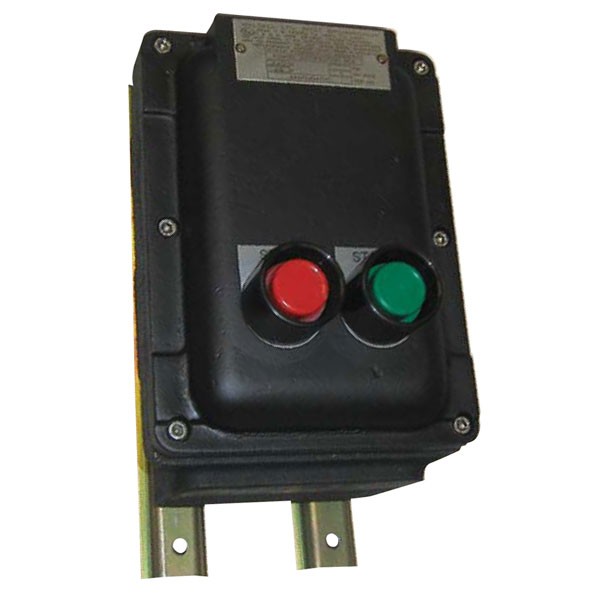

IP66 Wall Mount DOL Starter for 3kW (4HP) and 4kW (5.5HP) 3 Phase fixed speed motors.
Hazardous area use to 94/9/EC Ex II 2 GD
Protection type is EEx d IIB T6
Front mounted Start and Stop buttons acting on internal 415V coil (alternative coil Voltages at 110V to 480V available if required)
Temperature Class is -40C to +50C
Area classification is Zones 1, 2, 21 and 22 Groups IIA and IIB
Overload is adjustable from 6A to 10A motor flc.
Cast Iron case is 220mm high x 185mm wide x 161mm deep overall.
Finish is Zinc rich epoxy powder primer and epoxy power top coat in black
8mm fixing holes at 165mm x 120mm
Weight is 11kg
Cable to 2 x 20mm EEx d threaded holes in the bottom and 1 x 20mm EEx d threaded hole in the top (all fitted with plugs).
Allow 14 to 21 days delivery for this item.
Manufacturer is Walsall.
Part number is DOL-5.5-3-415-6.0/10.0
