Order Code: 20591
Part No: IH581-12P0R63-01024 (IH580-12P0R63-01024)
£224.13 + VAT
Delivery 3-5 working days
New from Manufacturer with Warranty

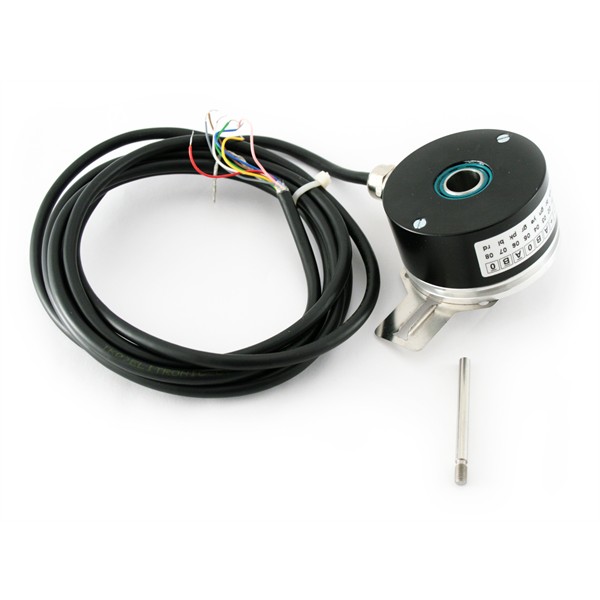

12mm Hollow Shaft Encoder for Feedback to SSD 690P closed loop AC Flux Vector drives and as fitted to Marelli Vector motors.
1024 pulses per rev at 15V in quadrature with zero track and flying leads.
Supply is 15V to 30V x 40mA Max
Output is push-pull, RS422A
200kHz maximum output
58mm diameter x 37mm long overall
12mm hollow input shaft to H7
Cover is aluminium with stainless shaft.
5800RPM maximum speed
Protection to IP65
Full part number is IH581-12P0R63-01024 Was IH580-12P0R63-01024
