Order Code: 20541
Part No: IPCM162/132M-4/321
£999.00 + VAT
Delivery 3-5 working days
New from Manufacturer with Warranty
Description:

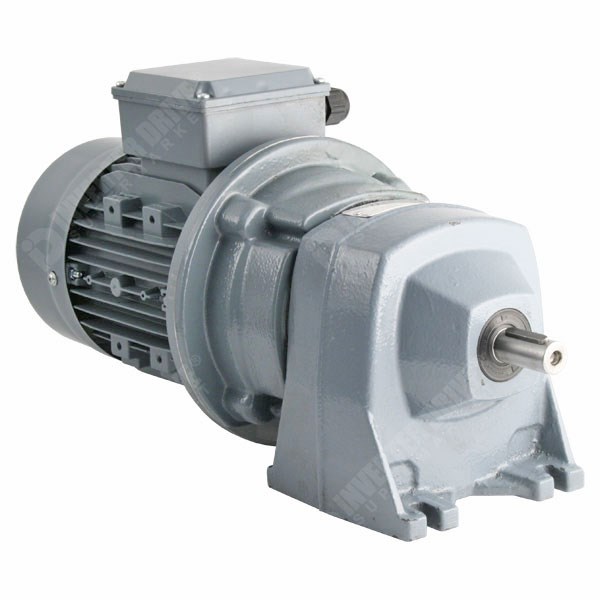

Pujol 4.5:1 In-Line Gear motor including 132 Frame - 7.5kW 3ph 4 Pole AC Motor for 400V 3 phase supply. Use with Variable Frequency Drives having or a fixed frequency mains supply at 50Hz.
Can be used over a 20:1 Speed Control range from 30RPM to 600RPM, with suitable de-rating at the lower speeds.
Fixed mains supply output is 7.5kW (10.0HP) x 321RPM at 400V x 50Hz 3ph.
Output Torque is 212Nm to 321RPM x 50Hz then reducing to 113Nm x 600RPM if used to 100Hz.
Service factor is 1.2
Full Load Current - xxA at 400V.
Overload - 150% x 60seconds.
Power Factor is xxx when mains connected at 50Hz.
Set terminal box links 'three a-breast' for 400V 'Delta' connection.
Set terminal box links ‘two at one side’ for 660V 'Star' connection.
Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Full part number is - IPCM 162/132M-4/321
