Order Code: 20339
Part No: LACM 61/71N-4/21
£295.00 + VAT
Delivery normally 6 weeks
New from Manufacturer with Warranty
Description:
Pujol 65:1 Right Angled Gear motor including 71 Frame - 0.37kW 3ph 4 Pole AC Motor for 230V and 400V 3 phase supply. Use with Variable Frequency Drives having 1ph or 3ph input and 3ph output or a fixed frequency mains supply at 50Hz.

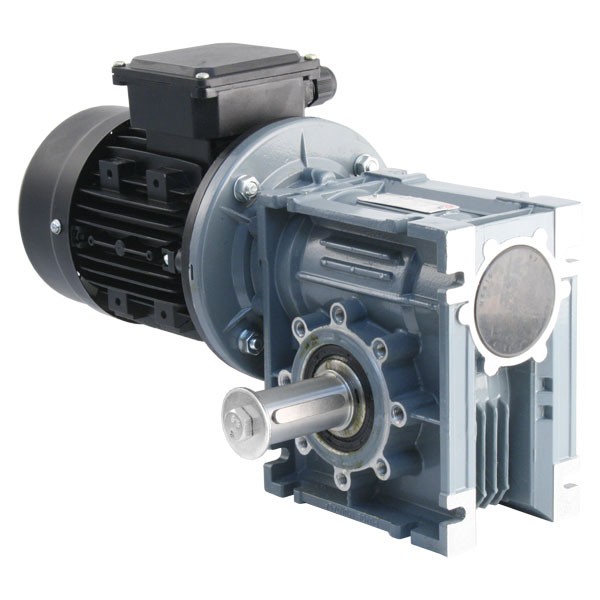

Note that the image shows a 30mm output shaft fitted which is not included - see linked products below.
Can be used over a 20:1 Speed Control range from 2RPM to 42RPM, with suitable de-rating at the lower speeds.
Fixed mains supply output is 0.21kW (0.28HP) x 21RPM at 230V or 400V x 50Hz 3ph.
Service factor is 1.2
Output Torque is 96Nm to 21RPM x 50Hz then reducing to 48Nm x 42RPM if used to 100Hz.
30mm diameter hollow output shaft. For solid output shaft, see separate item or ask us.
Mounting fixings on top, bottom and end or add the bolt on flange for output flange mounting.
Full Load Current - 2.08A at 230V, or 1.2A at 400V.
Overload - 150% x 60seconds.
Power Factor is 0.67 when mains connected at 50Hz.
Set terminal box links 'three a-breast' for 230V 'Delta' connection.
Set terminal box links ‘two at one side’ for 400V 'Star' connection.
Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Full part number is - LACM 61/71N-4/21
For the Technical…
Part Time Output when Inverter powered is...
48Nm x 42RPM at 100Hz
96Nm x 21RPM at 50Hz
96Nm x 10RPM at 25Hz
96Nm x 2RPM at 5Hz
Continuous Output when Inverter powered is...
48Nm x 42RPM at 100Hz
96Nm x 21RPM at 50Hz
82Nm x 10RPM at 25Hz
48Nm x 2RPM at 5Hz
