Order Code: 21863
Product Brand: Vascat
Part No: MACQi-200M-G61-B35/2186/11K0094
£9,034.00 + VAT
Delivery normally 7 weeks
New from Manufacturer with Warranty
Description:

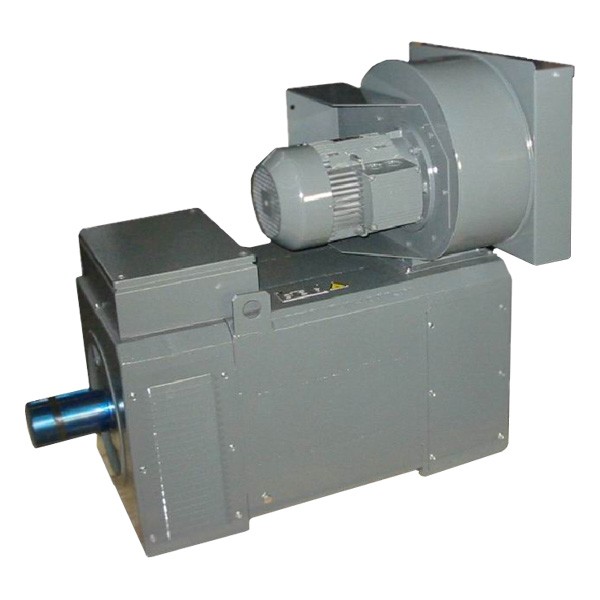

Vascat - 0/134/134kW x 0/1590/1750RPM - AC Vector Motor, foot and flange mounting (B35) for 400V 3 phase supply.
200M Frame, Force Ventilated (IC06) to IP23.
Includes force cooling fan and provision only for the ATEX encoder linked below.
Use with 690P Closed Loop AC Vector Drives having the encoder board option fitted for full closed loop vector control or similar.
Continuous Output is...
805Nm to 1590RPM, then reducing to 731Nm at 1750RPM
0/134/134kW x 0/1590/1750RPM at 0/81/90Hz for 253A x 400V
(Maximum speed is 3150RPM without overload or 2350RPM with maximum overload).
Part time Output to S6 (40%) is...
1250Nm to 1590RPM, then reducing to 1135Nm at 1750RPM
0/208/208kW x 0/1590/1750RPM at 0/81/90Hz
367A maximum x 400V, (at max overload reduce current limit with speed from 2350RPM to 261A at 3150RPM - drive must have reduced or speed dependent current limit to prevent slipping out of sync at speeds over 2350RPM).
S6 Duty is 4 minutes at maximum every 10 minutes (6 minutes off).
690P drive is 150% x 60 seconds, unless oversized.
Use over 1000:1 speed turn-down with full torque at zero speed in continuous and part time operation.
Weight is 455kg
Rotor Inertia is 0.805kgm2
Shaft is 65mm diameter x 140mm from shoulder with keyway
Ball bearing is included at the drive end for direct coupling.
Insulated bearing is included to prevent induced high frequency current circulating through the bearings.
423mm Wide x 919mm Long x 807mm high overall.
Foot mount on 19mm holes at 318mm wide x 458mm centres 133mm back from the front fixings.
Flange has 18mm diameter holes at 350mm pcd with 300mm diameter register.
Rated at 40C Ambient.
Force ventilation fan fitted at 1.5kW x 230/400V 3ph 50Hz (or 460V x 60Hz please specify).
Part number is - MACQi-200M-G61-B35/2186/11K0094
Applications include Test Rig Motor - Replaces DC Motor fitted to Test Equipment, Machine Tool Spindles and similar machines.
Download the dimensioned drawing from the link below...
