Order Code: 21576
Product Brand: Marelli
Part No: MAA100LA8 B5 Enc
£392.00 + VAT
Delivery normally 2 weeks
New from Manufacturer with Warranty
Description:

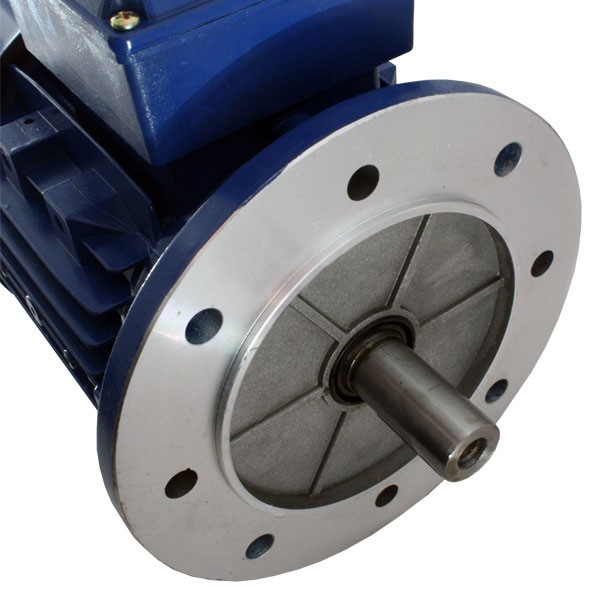

Marelli 100 Frame - 0.75kW 3ph 8 Pole Flange Mounting AC Motor for 230V and 400V 3 phase supply. Use with Variable Frequency Drives having 1ph or 3ph input and 3ph output or a fixed frequency mains supply at 50Hz.
Fixed mains supply output is 0.75kW (1HP) x 710RPM at 230V or 400V x 50Hz 3ph.
Full Load Current - 4.25A at 230V, or 2.45A at 400V.
Overload - 150% x 60seconds.
Power Factor is 0.67 when mains connected at 50Hz.
Set terminal box links 'three a-breast' for 230V 'Delta' connection.
Set terminal box links 'two at one side' for 400V 'Star' connection.
Encoder included is 2048ppr x 12 to 30V (type IH580-1400-R63/2048)
194mm Wide x xxxmm Long x 259mm high overall in its IP55 enclosure.
Flange mount on 14mm holes at 215mm pcd in 250mm diameter flange with 180mm spigot.
Shaft is 28mm dia x 60mm with 8mm wide key.
Shaft side load is 110kg for 20,000hrs life (6206-2Z bearing)
Weight is 21kg.
Rotor inertia is 0.009kgm2
Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Full part number is - MAA100LA8-B5-Enc (MAA 100 LA8 B5 Enc)
Download the technical catalogue with dimensions from the link below:-
