Order Code: 19407
Product Brand: Marelli
Part No: MAA63MA4 B5
£42.00 + VAT
1 in Stock - order by 3pm for next working day delivery*
New from Manufacturer with Warranty
Description:

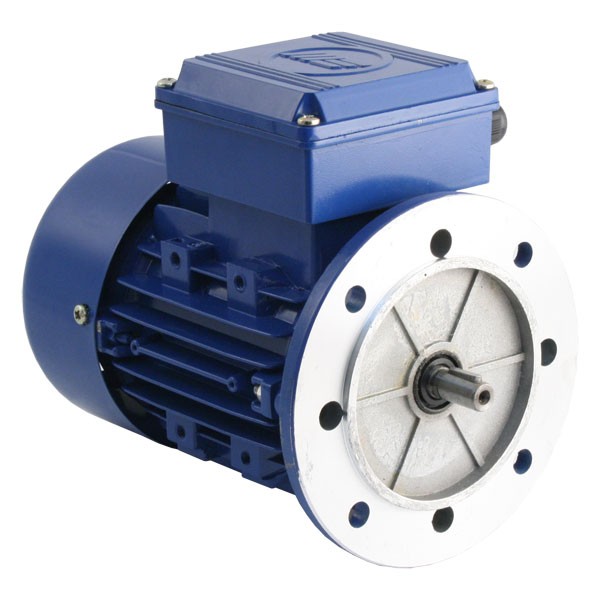

Marelli - 0.12kW 3ph 4 Pole Flange Mounting (B5) 63 Frame AC Motor for 230V or 400V 3 phase supply. Use with Variable Frequency Drives having 1ph or 3ph input and 3ph output or a fixed frequency mains supply at 50Hz.
Fixed Mains Supply Output: 0.12kW (0.16HP) x 1370RPM at 230V or 400V x 50Hz 3ph.
Inverter Supply Output: 20:1 Speed Control range from 137RPM to 2740RPM for 5Hz to 100Hz, with suitable de-rating at the lower speeds.
Full Load Current - 0.76A at 230V, or 0.44A at 400V.
Power Factor is 0.66 when mains connected at 50Hz.
Set terminal box links 'three a-breast' for 230V 'Delta' connection.
Set terminal box links ‘two at one side’ for 400V 'Star' connection.
120mm Wide x 208mm Long x 164mm high overall in its IP55 enclosure.
B5 Flange mounting on 9mm holes at 115mm pcd in 140mm dia flange with 95mm dia spigot (IEC = F115).
Shaft is 11mm dia x 23mm with 4mm wide key.
Shaft side load is 47kg for 20,000hrs life (6201-2Z bearing)
Weight is 3.9kg.
Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Part number is - MAA63MA4/B5 (MAA 63 MA4-B5)
For the Technical…
Part Time Output when Inverter powered is...
0.4Nm - 0.12kW (0.16HP) x 2740RPM at 100Hz
0.8Nm - 0.12kW (0.16HP) x 1370RPM at 50Hz
0.8Nm - 0.06kW (0.08HP) x 685RPM at 25Hz
0.8Nm - 0.012kW (0.016HP) x 137RPM at 5Hz
Continuous Output when Inverter powered is...
0.4Nm - 0.12kW (0.16HP) x 2740RPM at 100Hz
0.8Nm - 0.12kW (0.16HP) x 1370RPM at 50Hz
0.7Nm - 0.05kW (0.07HP) x 675RPM at 25Hz
0.4Nm - 0.006kW (0.008HP) x 137RPM at 5Hz
Download the technical catalogue with dimensions from the link below...
