Order Code: 20779
Product Brand: Marelli
Part No: MAA63MB4 B3
£44.00 + VAT
1 in Stock - order by 3pm for next working day delivery*
New from Manufacturer with Warranty
Description:

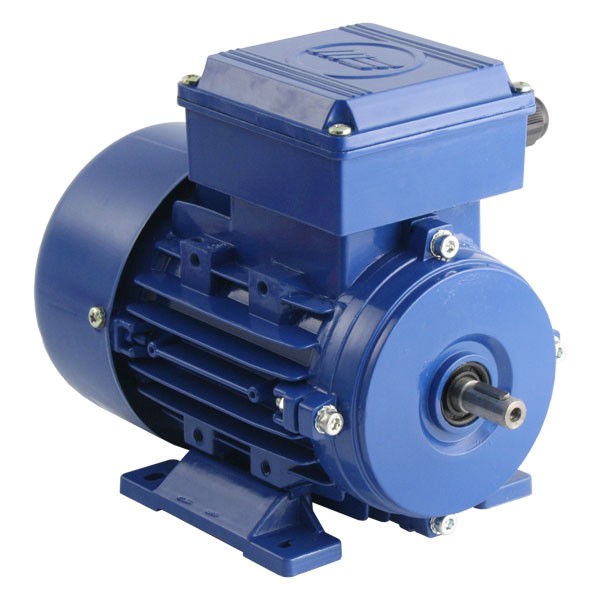

Marelli - 0.18kW (0.25HP) 3ph 4 Pole Foot Mounting 63 Frame AC Motor for 230V or 400V 3 phase supply. Use with Variable Frequency Inverter Drives having 1ph or 3ph input and 3ph output or a fixed frequency mains supply at 50Hz.
Fixed Mains Supply Output: 0.18kW (0.25HP) x 1350RPM at 230V or 400V x 50Hz 3ph.
Inverter Supply Output: 20:1 Speed Control range from 135RPM to 2700RPM for 5Hz to 100Hz, with suitable de-rating at the lower speeds.
Full Load Current - 1.18A at 230V, or 0.68A at 400V.
Power Factor is 0.85 when mains connected at 50Hz.
Efficiency is 59% at full load and 57.7% at 75% load.
Set terminal box links 'three a-breast' for 230V 'Delta' connection.
Set terminal box links ‘two at one side’ for 400V 'Star' connection.
130mm Wide x 215mm Long x 173mm high overall in its IP55 enclosure.
Foot mount on 7mm holes at 100mm wide x 80mm centres 40mm back from shaft shoulder.
Shaft is 11mm dia x 23mm with 4mm wide key.
Shaft side load is 47kg for 20,000hrs life (6201-2Z bearing)
Weight is 3.9kg.
Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Full part number is - MAA63MB4 (MAA 63 MB4)
For the Technical…
Part Time Output when Inverter powered is...
0.63Nm - 0.18kW (0.25HP) x 2700RPM at 100Hz
1.27m - 0.18kW (0.25HP) x 1350RPM at 50Hz
1.27Nm - 0.09kW (0.12HP) x 675RPM at 25Hz
1.27Nm - 0.018kW (0.025HP) x 135RPM at 5Hz
Continuous Output when Inverter powered is...
0.63Nm - 0.18kW (0.25HP) x 2700RPM at 100Hz
1.25Nm - 0.18kW (0.25HP) x 1350RPM at 50Hz
1.06Nm - 0.08kW (0.107HP) x 675RPM at 25Hz
0.62Nm - 0.009kW (0.012HP) x 135RPM at 5Hz
Download the Technical catalogue from the link below...
