Order Code: 19381
Part No: 0.0943TECAB3 56 (56M4B-TECA B3)
£30.00 + VAT
2 in Stock - order by 3pm for next working day delivery*
New from Manufacturer with Warranty
Description:

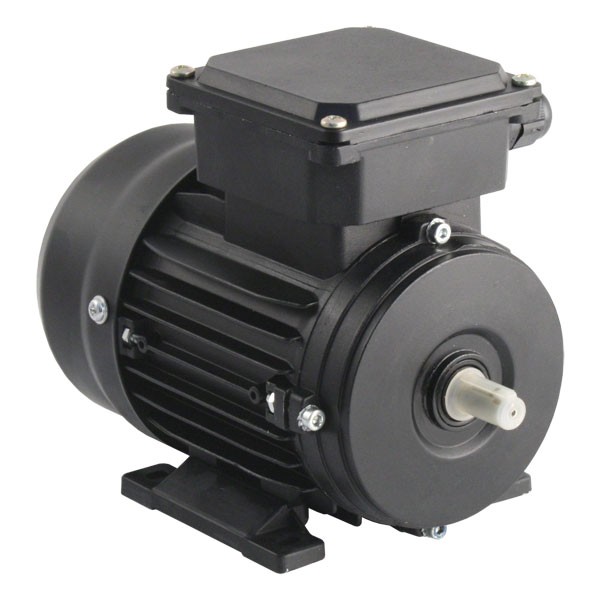

TEC Electric 0.09kW 3ph 4 Pole Foot Mounting 56 Frame AC Motor for 230V or 400V 3 phase supply. Inverter Rated for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output, or a fixed frequency mains supply at 50Hz.
Fixed mains supply output: 90 Watts (0.12HP) x 1350RPM at 230V or 400V x 50Hz 3ph
Inverter supply output: 20:1 Speed Control range from 135RPM to 2700RPM for 5Hz to 100Hz with suitable de-rating at the lower speeds (70Hz is the maximum continuous for maximum output, as advised by the Manufacturer).
Full Load Current - 0.74A at 230V, or 0.43A at 400V.
Power Factor is 0.59 when mains connected at 50Hz.
Set terminal box links 'three a-breast' for 230V 'Delta' connection.
Set terminal box links ‘two at one side’ for 400V 'Star' connection.
120mm Wide x 195mm Long x 156mm high overall in its IP55 enclosure.
Foot mount on 5.8mm holes at 90mm wide x 71mm centres 36mm back from shaft shoulder.
Shaft is 9mm dia x 20mm with 3mm wide key.
Terminal box has 1 x M16 Gland.
Weight is 4kg.
Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.
Includes Thermistor overtemperature protection.
Part number is - 56M4B-TECA (56 M4B TEC-A)
For the Technical:-
Part Time Output when Inverter powered is...
0.32Nm - 0.09kW (0.12HP) x 2700RPM at 100Hz
0.64Nm - 0.09kW (0.12HP) x 1350RPM at 50Hz
0.64Nm - 0.045kW (0.06HP) x 700RPM at 25Hz
0.64Nm - 0.009kW (0.012HP) x 140RPM at 5Hz
Continuous Output when Inverter powered is...
0.45Nm - 0.09kW (0.12HP) x 1980RPM at 70Hz
0.64Nm - 0.09kW (0.12HP) x 1350RPM at 50Hz
0.54Nm - 0.038kW (0.051HP) x 700RPM at 25Hz
0.32Nm - 0.0045kW (0.006HP) x 140RPM at 5Hz
Download the Dimensions and Technical Catalogue from the links below:-
