Part No: RS220F R1100
Web Price:
£587.00 + VAT
New from Manufacturer with Warranty
Delivery normally 6 weeks
Description:

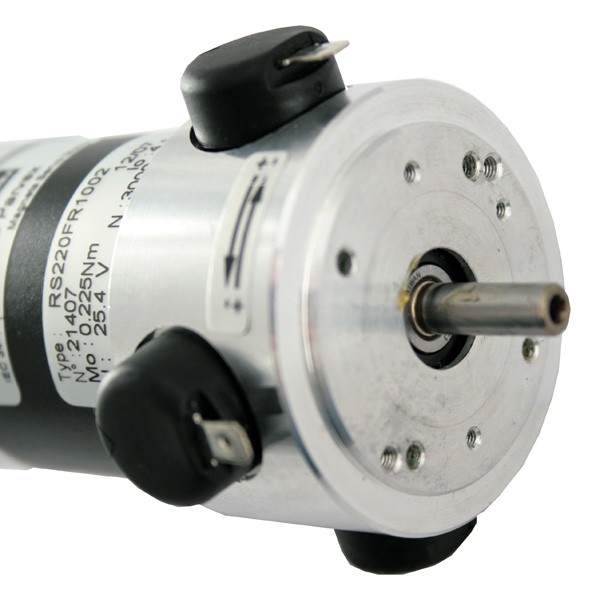

RS220FR1100 DC Servo Motor with Tachogenerator fitted.
0.225Nm Nominal Torque
3000RPM at 25.4V x 4.1A Armature
IP40 enclosure
Tacho fitted (TBN206) at 6V/1000RPM
68mm Diameter (over all) x 116mm Long body including the tacho and excluding the main shaft.
Shaft is 6mm dia x 20mm long.
Flange mount on M4 tapped holes (6mm deep) at 36mm pcd with 25mm dia spiggot
Weight is 0.9kg.
Inertia is 0.215kgcm2
Parvex Part Number - RS220F R1100
Made by Parvex (Axem) and sold under many other names including nameplates marked:- BBC (Brown Boveri Company), ABB, ASEA, GEC Alsthom, CEM, Kollmorgan, Mattke and Alstom.
Download the RS Servo Motor manual from the link below...
