Part No: ACG0090-4-01-3
Web Price:
£285.00 + VAT
New from Manufacturer with Warranty
Delivery normally 6 weeks
Description:

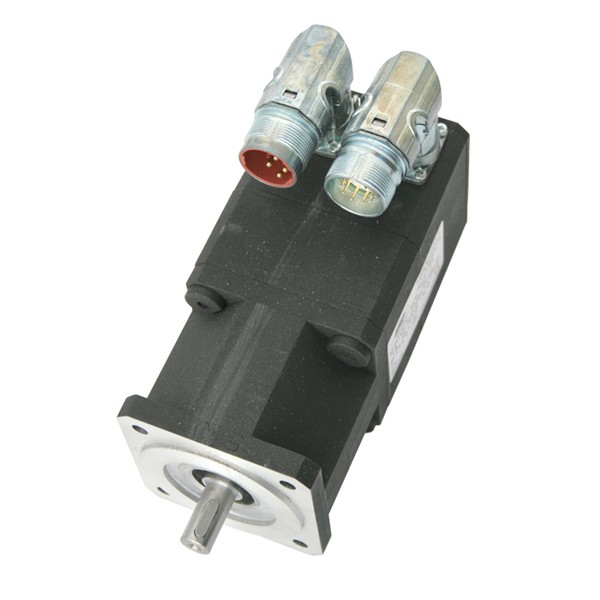

ACG0090-4/01-3 AC Servo Motor with Resolver fitted.
0.9Nm Rated Torque continuous at 4000RPM x 230V for 1.75A
1.1Nm Torque continuous at 0RPM for 2.0A
IP54 enclosure
Size 01.2
70mm Square x 150mm Long body including the resolver and excluding the main shaft.
Shaft is 11mm dia x 23mm long with 4mm wide keyway.
Flange mount on 5.5mm dia holes at 75mm pcd with 60mm dia spiggot
Weight is 2kg.
Inertia is 0.51kgcm2
Manufacturers Part Number - ACG0090-4/01-3
Made by Parker-SSD and the same as items sold under many other names including nameplates marked:- ASB and Eurotherm Drives.
