Part No: DK469037U002 (ACM2n0030-4/1-3)
Web Price:
£298.73 + VAT
New from Manufacturer with Warranty
Delivery normally 5 weeks
Description:

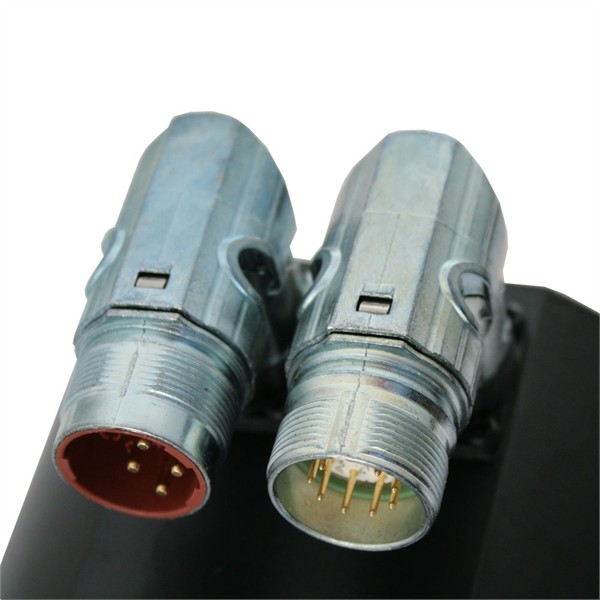

ACM2n 0030-4/1-3 AC Servo Motor with Resolver fitted.
0.3Nm Rated Torque continuous at 4000RPM for 0.8A x 230V
0.3Nm Torque continuous at 0RPM for 0.9A
55mm Square x 123mm Long body including the resolver and excluding the main shaft.
Shaft is 9mm dia x 24mm long with 3mm wide keyway.
Flange mount on 5.8mm dia holes at 63mm pcd with 40mm dia spigot
Inertia is 0.1kgcm2
Options available at extra price include Holding Brake. Contact us if you need this.
Manufacturers Part Number - ACM2n0030-4/1-3 (DK469037U002)
Made by Parker-SSD Drives and the same as items sold under many other names including nameplates marked:- ASB, Samson and Eurotherm Drives.
Download the ACM2n Servo Motor Technical Catalogue (Manual) from the link below...
