Part No: DK469037U203 (ACM2n0055-4/1-3 )
Web Price:
£349.64 + VAT
New from Manufacturer with Warranty
Delivery normally 2 weeks
Description:

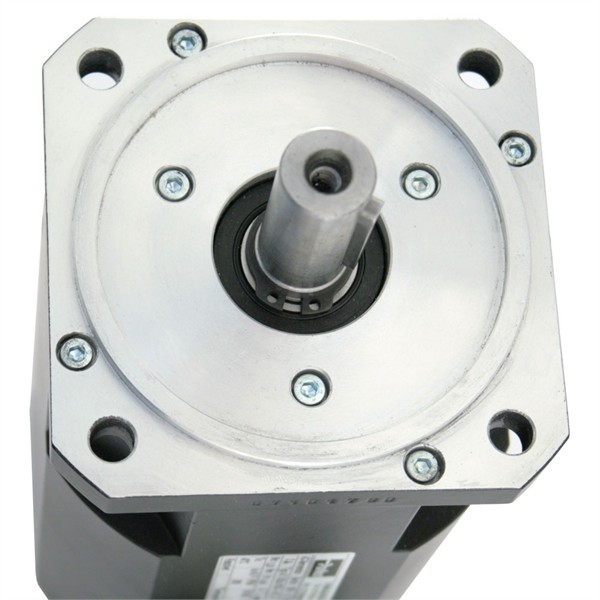

ACM2n 0055-4/1-3 AC Servo Motor with Resolver fitted.
0.55Nm Rated Torque continuous at 4000RPM for 1.4A x 230V
0.8Nm Torque continuous at 0RPM for 2.1A
88mm Square x 112mm Long body including the resolver and excluding the main shaft.
Shaft is 14mm dia x 30mm long with 5mm wide keyway.
Flange mount on 7mm dia holes at 100mm pcd with 80mm dia spigot
Inertia is 0.3kgcm2
Options available at extra price include Holding Brake. Contact us.
Manufacturers Part Number - ACM2n0055-4/1-3 (DK469037U203)
Made by Parker-SSD Drives and the same as items sold under many other names including nameplates marked:- ASB, Samson and Eurotherm Drives.
Download the ACM2n Servo Motor Technical Catalogue (Manual) from the link below...
