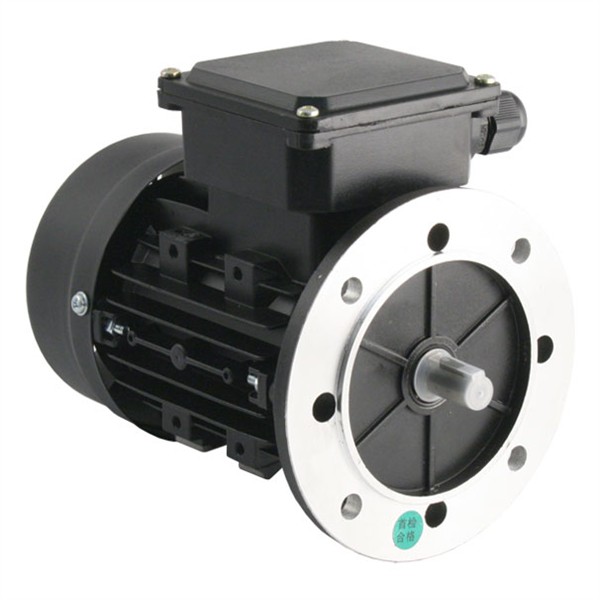

TEC - 230V Single Phase Motor 0.25kW (0.33HP) Cap Run 2P 63F Flange

Order Code: 22036

Product Brand: TEC Electric Motors

Range: MY Single Phase Cap Run

Part No: 0.2521TPC B5

£74.00 + VAT

1 in Stock - order by 3pm for next working day delivery*

New from Manufacturer with Warranty

Description:

TEC 63 Frame - 0.25kW (0.33HP) Single Phase Capacitor Run 4 Pole AC Motor for use at fixed Speed.

Use with a fixed frequency 1ph input at 230V x 50Hz for 0.25kW x 2800RPM.

Low starting torque at 70%.
Full Load Current - 1.96A.
Starting Current is 7A.

140mm Wide x 230mm Long x 185mm high overall in its IP55 enclosure.
Flange mount on 4 x 10mm holes at 115mm pcd in 140mm dia flange with 95mm spigot.
Shaft is 11mm dia x 23mm with 4mm wide key.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.

Full part number is - 0.2521TPC B5

Download the Datasheet including drawings from the link below:-

• TEC Single Phase Cap Run Motor Drawing (662 kB)
• TEC TPC Single Phase Cap Run Motor Connections (24 kB)
