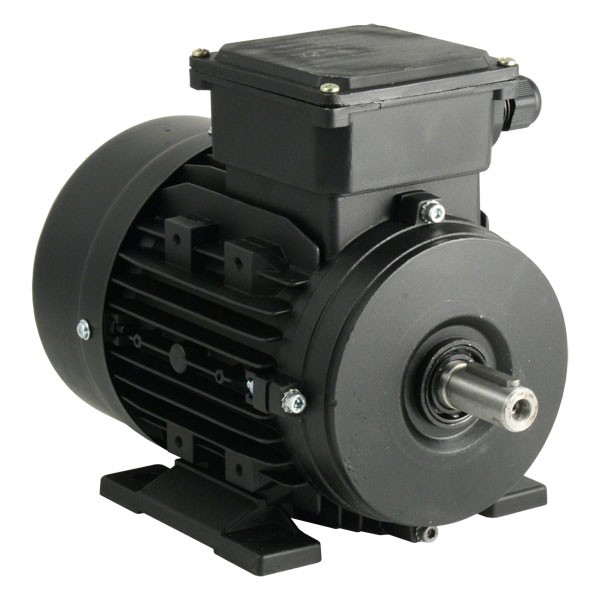

TEC - 230V Single Phase Motor 1.5kW (2HP) Cap Start 2P 90F Foot

Order Code: 20228

Product Brand: TEC Electric Motors

Range: ML Single Phase Cap Start

Part No: 1.521TCC B3

£175.00 + VAT

Delivery 3-5 working days

New from Manufacturer with Warranty

Description:

TEC 90S Frame - 1.5kW (2HP) Single Phase Capacitor Start/Run 2 Pole AC Motor for use at fixed Speed.

Use with a fixed frequency 1ph input at 230V x 50Hz for 1.5kW x 2800RPM.

High starting torque at 120%.
Full Load Current - 9.44A.
Starting Current is 55A.

Mounting is B3 Foot mounting.
Foot mount on 10mm holes at 140mm wide x 100mm centres 56mm back from shaft shoulder.
Shaft is 24mm dia x 50mm long with 8mm keyway.
Weight is 13kg

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.

Full part number is - ML90S-2-B3

Download the Dimensions and Technical Catalogue from the links below...

• TEC Single Phase Cap Start Motor Drawing (275 kB)
• TEC TCC Single Phase Cap Start Motor Connections (20 kB)
