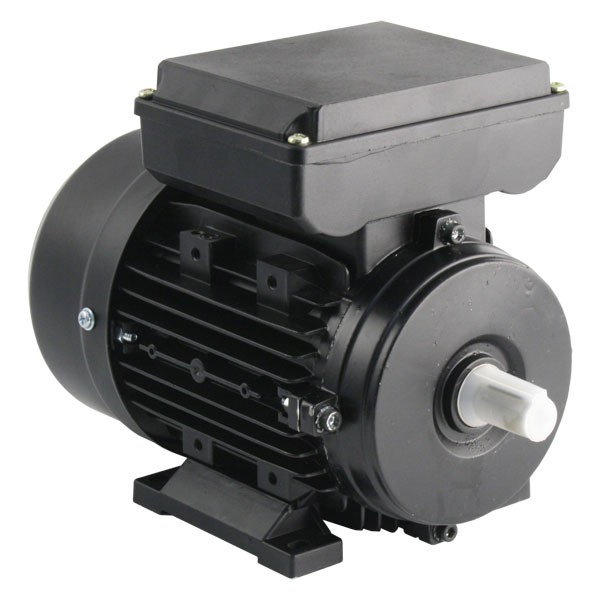

TEC - 230V Single Phase Motor 0.55kW (0.75HP) Cap Run 2P 71F Foot

Order Code: 19294

Product Brand: TEC Electric Motors

Range: MY Single Phase Cap Run

Part No: 0.5521TPC B3

£77.00 + VAT

1 in Stock - order by 3pm for next working day delivery*

New from Manufacturer with Warranty

Description:

TEC 71 Frame - 0.55kW (0.75HP) Single Phase Capacitor Run 2 Pole AC Motor.  Use with a Variable Frequency Drive having 1ph input and 1ph output or a fixed frequency mains supply at 50Hz.

Fixed Mains supply output - 0.55kW x 2800RPM at 230V x 50Hz 1 phase input.
Inverter supply output - 12:1 Speed Control range from 280RPM to 3360RPM, with suitable de-rating at the lower speeds (usually Fan or Centrifugal Pump loads).

Low starting torque at 70%.
Full Load Current - 3.88A.
Starting Current is 15A.

Mounting is B3 Foot mounting.
Foot mount on 7mm holes at 112mm wide x 90mm centres 45mm back from shaft shoulder.
Shaft is 14mm dia x 30mm long with 5mm keyway.
Weight is 6.2kg.

Rated at 40C Ambient.
Ventilation space required at rear cooling air intake.

Part number is - 0.5521TPC B3 (MY7122-B3)

Download the Dimensions and Technical Catalogue from the links below...

• TEC Single Phase Cap Run Motor Drawing (662 kB)
• TEC TPC Single Phase Cap Run Motor Connections (24 kB)
