Part No: PFE-04
Web Price:
£79.20 + VAT
New from Manufacturer with Warranty
Delivery 3-5 working days
Description:

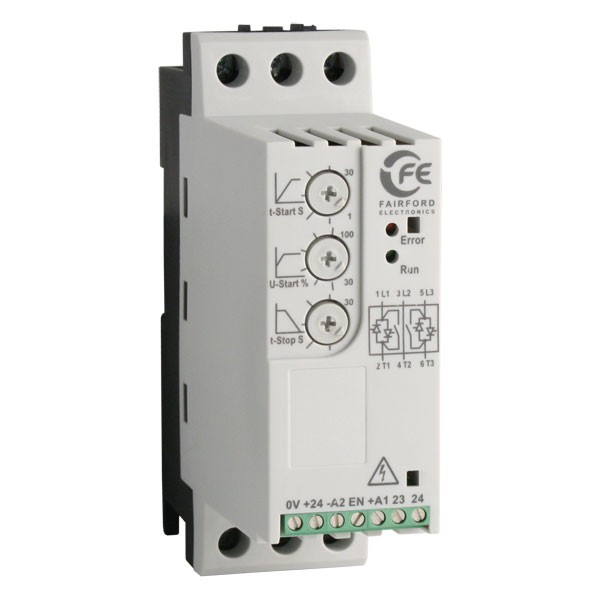

Fairford Electronics PFE-04 Soft Start for a 230/400V 3 Ph motor up to 3kW (4HP) at 7A.
Size 1: 45mm Wide x 120mm Deep x 140mm high. IP20.
Rated to suit motors and Trip Class Ratings:
3.0kW, 6.5A at 400V - Trip Class 5
2.2kW, 6.5A at 400V - Trip Class 10B
(see Trip Class Guide below for definitions)
Input Voltage - 230-460Vac 3 Phase +10% -15% at 50/60Hz ±2%.
Overload:- 300% x 5 seconds at standard rating.
Starts per hour:- 10 (or 5 starts + 5 soft stops) - Standard
Starts per hour:- 60 (or 30 starts + 30 soft stops) - with optional fan
Start Time: 1-30s
Stop Time: 0-30s
Features include:
Bypass Contactor.
Pedestal Voltage:- adjustable from 30% for standard rating to 100% for high breakaway loads.
Requires 24V Control Supply - see linked products below.
Wall mount in clean environment, onto symmetrical DIN rail or cubicle mount.
Rated at 40C Ambient.
Full part number is PFE-04
Download the Fairford PFE Manual from the link below:-
