Order Code: 22307
Part No: 7100L/25A/230V/FUSE/LDC/ENG/NONE
£75.00 + VAT
2 in Stock - order by 3pm for next working day delivery*
New from Manufacturer with Warranty
Description:

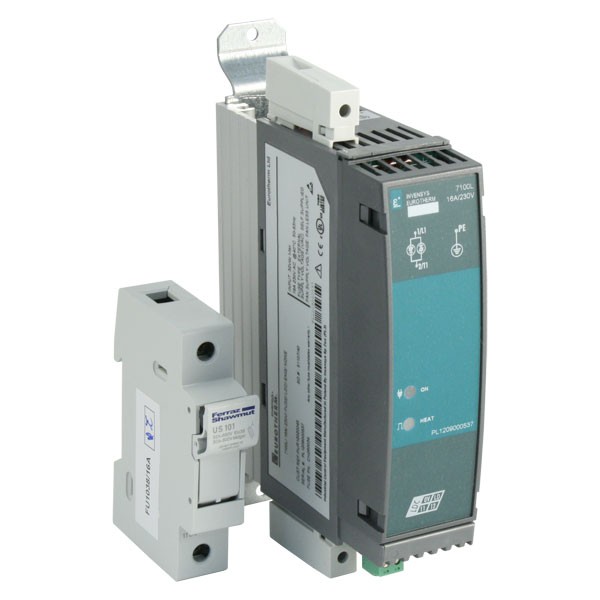

Eurotherm 7100L Series Solid State Contactor to 25A. Switches 48-253V Single Phase resistive loads (eg. heating elements) via a simple DC Logic (on/off) input.
Solid State design offers longer life, faster cycle times and silent operation over electromechanical contactors.
Size: 35mm Wide x 140mm Deep x 164mm High. IP20.
Mounting via 35mm symmetric DIN rail or panel mount via 2 x M4 screws.
Weight: 0.45kg
Current: 25A
Voltage: 48-253Vac Single Phase at 47-63Hz.
Fuse: Fuse Holder and Barrel Fuse included (without microswitch)
Input: DC Logic, 5-32 VDC = On, 0-2 VDC = Off or > 9mA = On, < 0.5mA = Off
Rated: 45° ambient
Language: English
This product is also known as a 'Solid State Relay' or 'SSR'.
Manufacturer part number: 7100L/25A/230V/FUSE/LDC/ENG/NONE. Typical applications include Furnace Heater element on/off control from the digital outputs of PID Temperature controls.
Download the Eurotherm 7100L Manual from the link below:-
