ABB ACS350 - 5.5kW 400V 3ph - AC Inverter Drive Speed Controller with Keypad

Click to Zoom

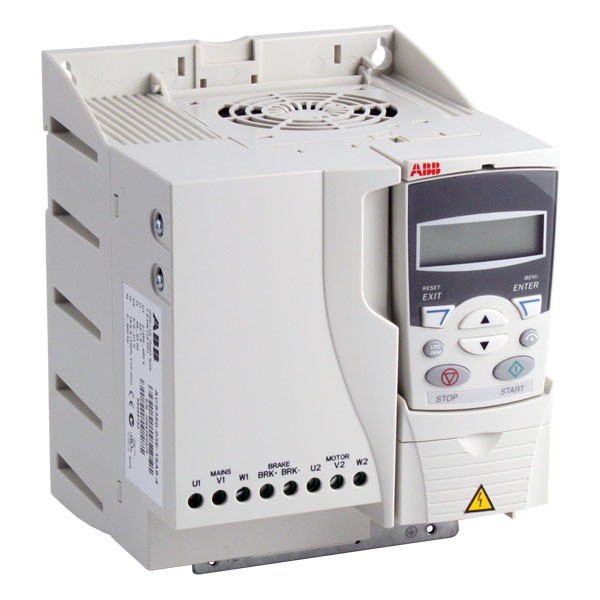

Photo of ABB ACS350 - 5.5kW 400V 3ph - AC Inverter Drive Speed Controller with Keypad

Order Code: 21057

Product Brand: ABB

Part No: ACS350-03E-12A5-4+J404

Obsolete product. Alternatives may be available - see linked products below


ABB ACS350 AC Frequency Inverter and simple Keypad for 5.5kW (7.5HP) 400V 3 Ph motor in VxF or Sensorless Vector control to 12.5A. Simple to set-up with 400V three phase input for a standard AC Induction motor.

R3 Size - 169mm Wide x 169mm Deep x 202mm high (plus cable clamp plate at 34mm) IP20 case.

Overload - 150% x 60seconds.
Speed Control Range - 0/500Hz.
Braking - To 50 Ohm minimum external resistor (not supplied) - use the 'Which Resistor' button on this page.

Features - Basic Keypad, 2 x Analogue Inputs, 5 x Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
Programmable from a pc via 'Flashdrop'.

Input Current - 18.8A.
Input Voltage - 380 to 480V three phase +-10% at 50/60Hz.

Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 75mm.
Ventilation space at sides - 0mm.
Heat Loss at max output - 130W.
Mounting onto symmetrical DIN rail or use the screw fixings for side or rear mounting.

Full part number is - ACS350-03E-12A5-4+J404

Replaces the ACS143 that is no longer manufactured.

Download the ABB ACS350 Manual and Installation Guide from the links below:-
