Order Code: 19628
Product Brand: LS
Part No: SV015iG5A-4
£170.00 + VAT
1 in Stock - order by 3pm for next working day delivery*
New from Manufacturer with Warranty

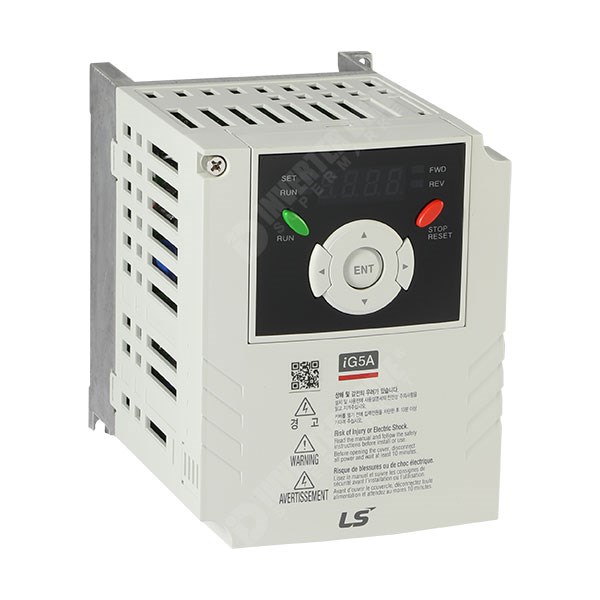

LS Industrial Systems Starvert iG5A AC Frequency Inverter for 1.1kW (1.5HP) and 1.5kW (2HP) 400V 3 Ph motor in VxF or Sensorless Vector Control control to 4A. Simple to set-up for a standard AC Induction motor.
Dimensions - 100mm Wide x 130mm Deep x 128mm high.
Overload - 150% x 60 seconds.
Speed Control Range - 0-400Hz.
Braking - To 300 Ohm minimum external resistor (not supplied) - See the Resistor options linked below or use the 'Which Resistor' button on this page.
Features - integrated keypad, 1 x Analogue Input, 8 Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
Programmable from a PC via 'Drive View'.
EMC Filters - None. See linked products below for external footprint EMC Filter Module.
Input Current - 5.3A.
Input Voltage - 380-480V three phase +10%, -15% at 50/60Hz ±5%.
Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 100mm.
Ventilation space at sides - 50mm.
2 x 4.5mm diameter mountings at rear for mounting.
Full part number is - SV015iG5A-4 (SVO15iG5A-4)
Can be used with two phase input at 40% de-rating for motor control, to replace a capacitor based phase converter supply.
Download the LS Starvert iG5A Manual from the link below:-
